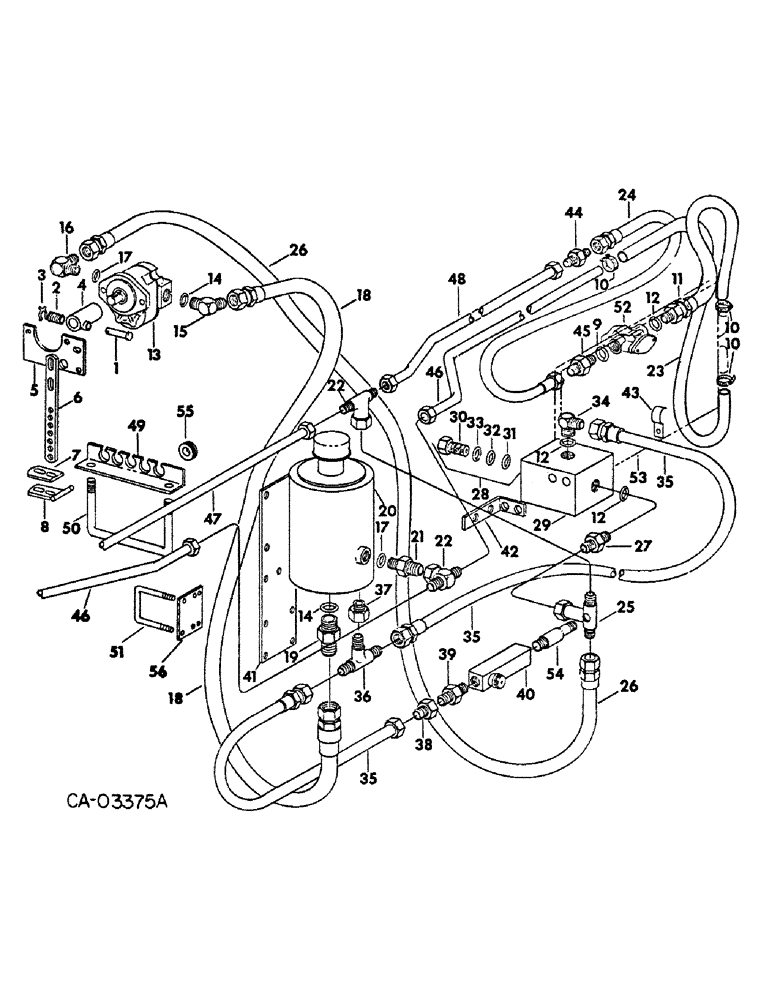

Запчасти Case IH 500 (B-41) - HYDRAULIC BLOWER DRIVE, FOR 6 ROW WIDE DOUBLE ROW, 12 AND 16 ROW

1

631976R91

PIN

ASSY, lock, used only with couplings, 60582C1, 140584C1 & 549319R91

1шт.

2

455347R1

VALVE SPRING

SPRING, locking pin, for pin, 631976R91

1шт.

3

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

x, for pin, 631976R91

1шт.

4

549319R91

COUPLING

ASSY, pressed, for use w/pump, 549531R91

1шт.

4

60582C1

COUPLING ASSY, for use w/pump, 60584C91

1шт.

4

140584C1

COUPLING

ASSY, order 1279355C91, for use w/pump, 142482C91

1шт.

4

149504C92

COUPLING

ASSY, dual modules, twist type, order coupling, 1279355C91, composed of

1шт.

1261263C1

COLLAR

1шт.

1261262C1

CAP WASHER

COVER, collar

1шт.

HUB, (NSS)

1шт.

1261261C1

PIN

1шт.

1268289C1

PRODUCT GRAPHIC

caution

1шт.

383878R1

SNAP RING,1.25, Int, #125

RING, 1.388 int ret

1шт.

4

1279355C91

COUPLING

ASSY, dual modules, push pull type, replaces 140584C1 and 149504C92, composed of

1шт.

21505R1

BALL,1/2" Dia, Stainless

1/2 grade ST100 metal

3шт.

1279357C1

COLLAR

1шт.

HUB, (NSS)

1шт.

279762R1

SNAP RING,#168, Ext

RING, 1.560 ext ret

1шт.

1279356C1

SPRING

1шт.

180141

SPRING,Hex, 7/16" - 14 x 5/8", Gr 5

SCREW, 7/16-14 x 5/8 znd hex-hd cap

1шт.

180146

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, 7/16-14 x 1-1/8 znd hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

60583C1

WASHER

15/32 x 1-3/16 x 3/16

1шт.

5

56773C1

PLATE

pump mounting

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 3/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

6

56774C1

BRACKET

adjusting

1шт.

M906

HEADED PIN,7/16" x 1 1/8"

PIN, 7/16 x 1-1/8 std-hd

2шт.

NLS

NO LONGER SERVICED

.469 x .922 x .051 znd

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

7

56775C91

ANGLE

STRAP ASSY

1шт.

8

56776C1

BAR

STRAP

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2-13 x 4-1/2 znd hex-hd cap

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074 C-Z

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

10

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

4 for 6 row wide double row #06, .44/.78 Type F Worm

6шт.

11

549519R1

HYDRAULIC HOSE,0.50" ID x 38.00", SAE 30R2 Type 3 or SAE 100R3

Top Return, Hydraulic Motor to Oil Cooler 0.50" ID x 38.00", SAE 30R2 Type 3 or SAE 100R3

2шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

4шт.

13

549531R91

PUMP

ASSY, hydraulic gear, order pump, 60584C91, coupling, 60582C1, screw, 180141, screw, 180146, washer 120383 and two washers, 60583C1

1шт.

13

142482C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, replaces 60584C91, for components see list of parts under details of hydraulic pump

1шт.

14

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD tube

2шт.

15

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1-5/16-12 C-Z 37 deg hyd flared tube adj STR THD 90 deg

1шт.

16

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 C-Z 37 deg hyd flared tube adj STR THD 90 deg

1шт.

17

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

2шт.

18

58159C1

HOSE

50 in. suction

1шт.

19

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

UNION, 1-5/16-12 C-Z 37 deg hyd flared tube short swivel

1шт.

20

156395C91

RESERVOIR

ASSY, hydraulic oil, 3 gallon, for components see list of parts under details of hydraulic oil reservoir

1шт.

21

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION, 1-1/16-12 C-Z 37 deg hyd flared tube short swivel

1шт.

22

549529R1

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Fem Sw Br

special 1-1/16 x 7/8 x 7/8

2шт.

23

549957R1

HYDRAULIC HOSE,0.5" ID x 176.00", SAE 100R6, SAE J517

SAE 100R6, SAE J517 - 83.00" Required, Return, To Oil Cooler, 12 and 16 row 0.5" ID x 176.00", SAE 100R6, SAE J517

2шт.

23

60801C1

HOSE,0.50" ID x 130.00", SAE 30R2, SAE 100R6

- Return, to oil cooler, 6 row wide double row 0.50" ID x 130.00", SAE 30R2, SAE 100R6

2шт.

24

347163R91

HOSE ASSY, 1/2 ID x 83 in. pressure, 12 and 16 row

2шт.

24

60800C1

HOSE

ASSY, 1/2 ID x 100 in. pressure, to right hydraulic motor, 6 row wide double row

1шт.

24

60799C1

HOSE

ASSY, 1/2 ID x 128 in. pressure, to left hydraulic motor, 6 row wide double row

1шт.

25

539791R1

TEE

special

1шт.

26

58940C1

HOSE,19.05mm ID x 1219.2mm L

- Pressure 0.75" ID x 48.00"

1шт.

27

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

UNION, 1-1/16 x 7/8 reducer

1шт.

28

549528R93

VALVE

ASSY, relief, includes ref nos 29 through 33

1шт.

29

403187R1

BLOCK

relief valve

1шт.

30

396729R93

VALVE

ASSY, 2300 PSI pilot relief

1шт.

31

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 class 6

1шт.

32

378985R2

BACK-UP RING

relief valve

1шт.

33

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

34

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj STR THD 90 deg

1шт.

35

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

ASSY, 1/2 x 18-1/4 in. hydraulic, reservoir

2шт.

36

9403022

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

1/2-14 x 7/8-14 C-Z 37 deg hyd flared tube two way

1шт.

37

444323

BUSHING

REDUCER, 3/8 x 1/2

1шт.

38

9402749

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, Fem Pipe

CONNECTOR, 1/2-14 37 deg hyd flared tube internal pipe thread

1шт.

39

192467H1

NIPPLE, 1/2 to 1/4 male pipe reducing

1шт.

40

539794R91

VALVE

ASSY, control

1шт.

41

58262C3

PLATE

tank mounting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

42

58162C2

BRACKET, valve mounting

1шт.

NLS

NO LONGER SERVICED

SCREW, 7/16-14 x 2-3/4 znd hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

2шт.

43

468256R1

CLAMP

hose

8шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

44

478754R1

ADAPTER

REDUCER, 5/8 to 1/2, 12 and 16 row

2шт.

45

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 C-Z 37 deg hyd flared tube short swivel, 12 and 16 row

2шт.

46

58225C1

TUBE, return line, 12 row wide and 16 row 0.625" OD, 78, 18.2" Length

2шт.

46

58224C1

TUBE, return line, 12 row narrow 0.625" OD, 60, 18.2" Length

2шт.

47

58220C1

TUBE, pressure line RH, 12 row wide and 16 row

1шт.

47

58221C1

TUBE, pressure line RH, 12 row narrow 0.625" OD, 51.5, 6.3" Length

1шт.

48

58223C1

TUBE, pressure line LH, 12 row wide and 16 row 0.625" OD, 69.5, 6.3" Length

1шт.

48

58222C1

TUBE, pressure line LH, 12 row narrow 0.625" OD, 63.3, 6.3" Length

1шт.

49

58321C1

SUPPORT, hydraulic tubing, 12 and 16 row

1шт.

50

58025C1

U-BOLT, 3/8-16, 12 and 16 row

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

51

1250813C1

U-BOLT

5/8-11, 7 x 7

2шт.

51

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

5/8-11, 5 x 7

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 11 ga znd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

52

MOTOR ASSY, hydraulic blower, refer to seed handling blower unit

1шт.

53

COOLER, oil, refer to seed delivery and manifold assy unit

1шт.

54

443979

HYD CONNECTOR

NIPPLE, 1/4-18 znd auto. pipe

1шт.

55

117966

GROMMET,5/8" ID x 1 11/64" x .188"

5/8 rubber, 12 and 16 row

8шт.

56

128638C1

BAR, reinforcement

1шт.
