(B-66) - SCRAPERS, DOUBLE DISK OPENER, WHEN DEPTH BAND DRUMS ARE NOT USED, NON-STAGGERED, ONE PER ROW

Запчасти Case IH 500 (B-66) - SCRAPERS, DOUBLE DISK OPENER, WHEN DEPTH BAND DRUMS ARE NOT USED, NON-STAGGERED, ONE PER ROW

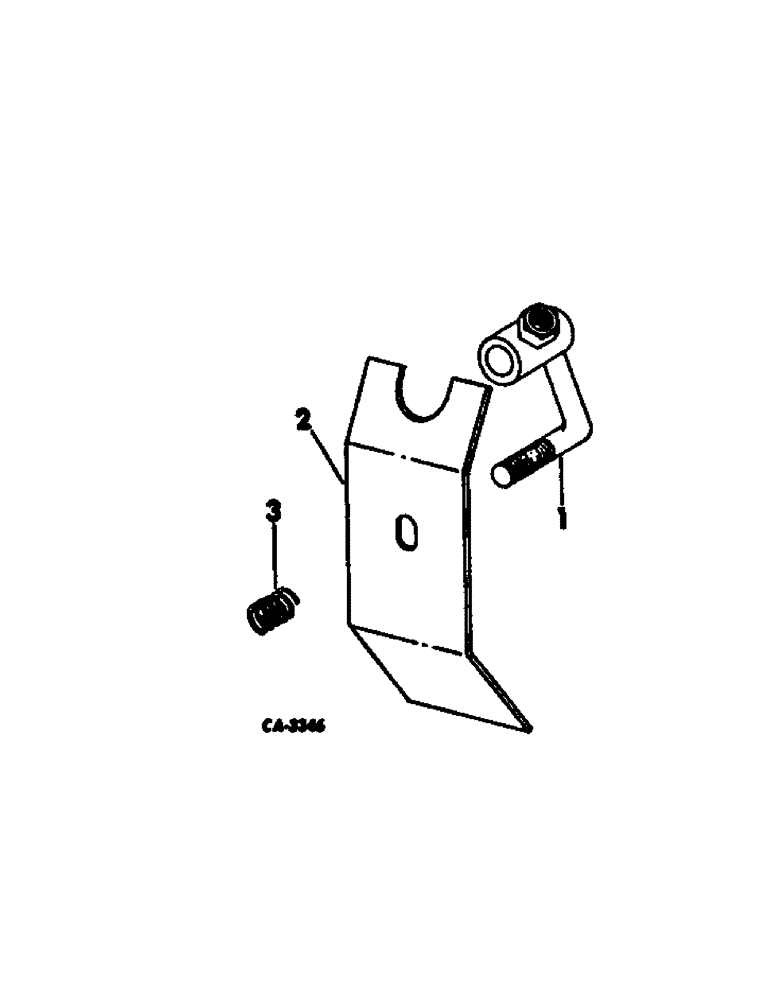

Схема запчастей Case IH 500 - (B-66) - SCRAPERS, DOUBLE DISK OPENER, WHEN DEPTH BAND DRUMS ARE NOT USED, NON-STAGGERED, ONE PER ROW
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

493111R1

SPACER

ASSY, left

1шт.

1

493112R1

SPACER

ASSY, right

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

120376

NUT,5/16"-18, G5

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

2

471240R1

SUPPORT

SCRAPER

2шт.

3

6633

SPRING

2шт.
