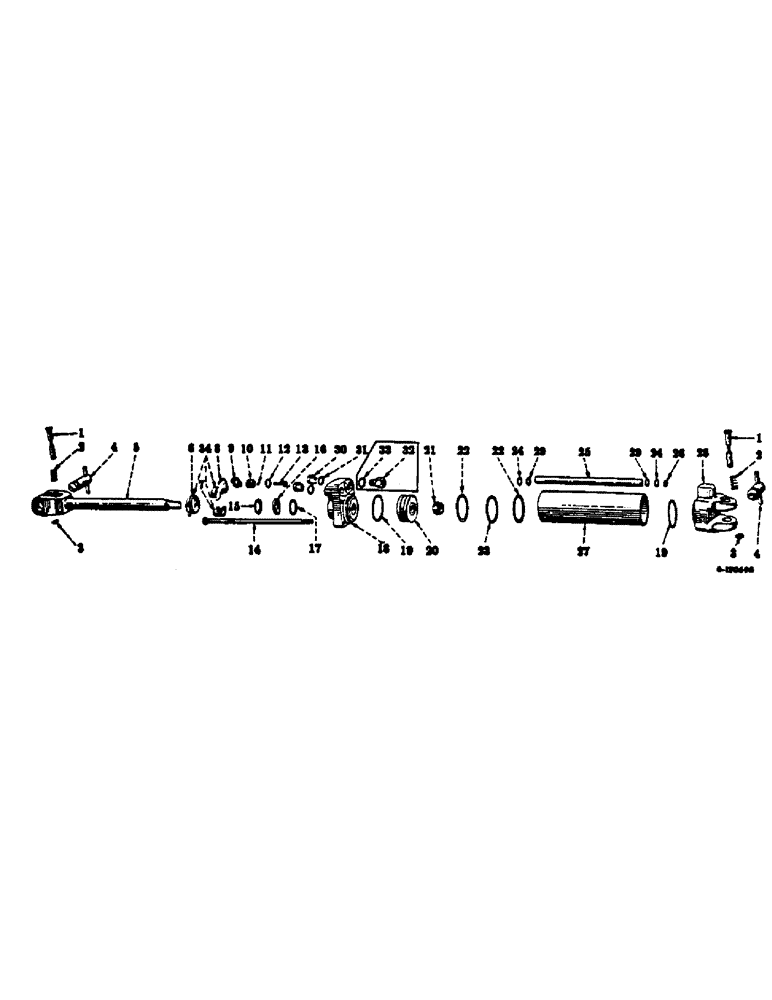

Запчасти Case IH 56-SERIES (N-63) - HYDRAULIC CYLINDER, 2-1/2 X 8 IN. DOUBLE ACTING

371291R96

CYLINDER BLOCK

CYLINDER ASSY, 2-1/2 x 8 in. double acting hydraulic

1шт.

1

352369R2

PIN

lock, used only w/piston rod, 361005R13 and head, 371296R3

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin, used only w/pin, 352369R2

2шт.

3

354837R1

WASHER

lock pin, used only w/pin, 352369R2

2шт.

4

352231R11

PIN

ASSY, pivot, used only w/piston rod, 361005R13 and head, 371296R3

2шт.

5

60784C91

ROD

ASSY, piston, replaces 361005R13 by also ordering pin, 61571C1 and pin, 520175R1

1шт.

383339R1

WASHER, rod seal back-up

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

61571C1

PIN

headed pivot

1шт.

6

361085R91

CLAMP

stroke limit collar

1шт.

7

360372R1

COLLAR

stroke limit plain half

1шт.

8

361010R1

COLLAR

stroke limit flanged half

1шт.

9

361009R1

PLATE

limit stop valve retainer

1шт.

172792

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

10

361007R11

RETAINER

ASSY

1шт.

11

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16, limit stop valve

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32, limit stop valve retainer large

1шт.

13

361006R11

VALVE

ASSY, limit

1шт.

14

384750R1

BOLT,Hex, 7/16" - 14 x 12 1/8"

cylinder tie

4шт.

15

354049R1

RETAINER

dust seal

1шт.

16

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, dust piston rod

1шт.

17

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

cylinder piston stop gland

1шт.

18

60794C91

HEAD

W/BALL & TWO PLUGS, 50410DA, cylinder front, replaces 371295R21 by also ordering washer, 383669R1

1шт.

50410DA

PLUG

hydraulic cylinder front

2шт.

19

343923R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2-1/4 x 2-1/2 x 1/8, hydraulic cylinder

2шт.

20

361000R1

HEAD

piston

1шт.

21

385020R1

NUT

3/4-16 hex. lock

1шт.

22

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

piston head back-up

2шт.

23

21255R1

O-RING,2.1" ID x 2.52" OD x 0.21"

2-1/8 x 2-1/2 x 3/16

1шт.

24

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32, hydraulic cylinder return tube

2шт.

25

372211R2

TUBE, hydraulic cylinder return

1шт.

26

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

cylinder

1шт.

28

60791C1

HEAD

rear cylinder, replaces 371296R3 by also ordering pin, 61571C1 and pin, 520175R1

1шт.

61571C1

PIN

headed pivot

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

29

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

return tube o-ring back-up

2шт.

30

9410360

PLUG

7/8-14 C-Z str thd o-ring boss

2шт.

31

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

32

372852R1

ADAPTER

cylinder hose, used w/head, 371295R1 (NSS)

1шт.

33

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 5/64, used w/head, 371295R1 (NSS)

1шт.

34

375426R91

COLLAR

ASSY, stroke limit

1шт.

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

thumb

1шт.

363137R94

PACKAGE

1шт.

PACKAGE, hyd cylinder o-ring service, consists of (1) o-ring 21255R1, (1) o-ring 21590R1, (2) o-ring 343923R1, (1) o-ring 350429R1, (2) o-ring 377952R1, (1) retainer 354049R1, (1) ring 354047R1, (1) seal 354048R1, (1) washer 383669R1, (2) washer 361013R1, (2) washer 371218R2

1шт.

530708R91

PACKAGE

piston rod yoke service, consists of yoke, 354046R4 (NSS) and installing instructions

1шт.
