(N-69[A]) - PRESS WHEEL SCRAPER ATTACHMENT, QUANTITIES SHOWN ARE PER ROW

Запчасти Case IH 56-SERIES (N-69[A]) - PRESS WHEEL SCRAPER ATTACHMENT, QUANTITIES SHOWN ARE PER ROW

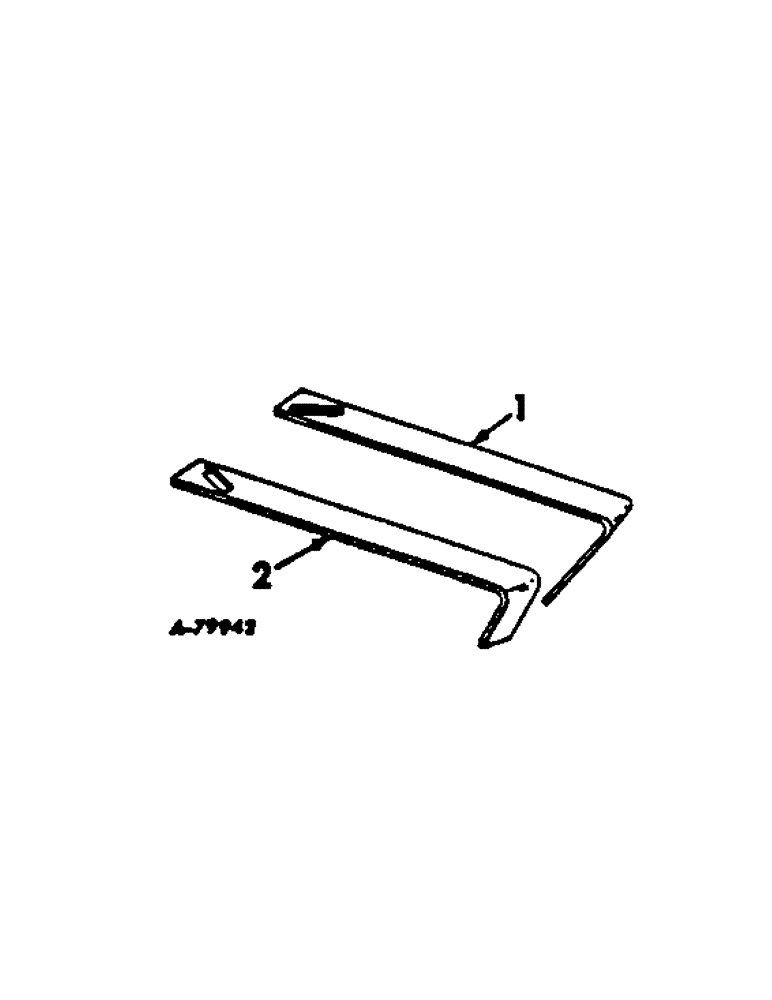

Схема запчастей Case IH 56-SERIES - (N-69[A]) - PRESS WHEEL SCRAPER ATTACHMENT, QUANTITIES SHOWN ARE PER ROW
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

624422R1

SCRAPER, RH

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 C-Z hex.

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

624421R1

SCRAPER, LH

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
