(R-08) - PRESS WHEEL PRESSURE SPRING, ONE PER ROW

Запчасти Case IH 90 (R-08) - PRESS WHEEL PRESSURE SPRING, ONE PER ROW

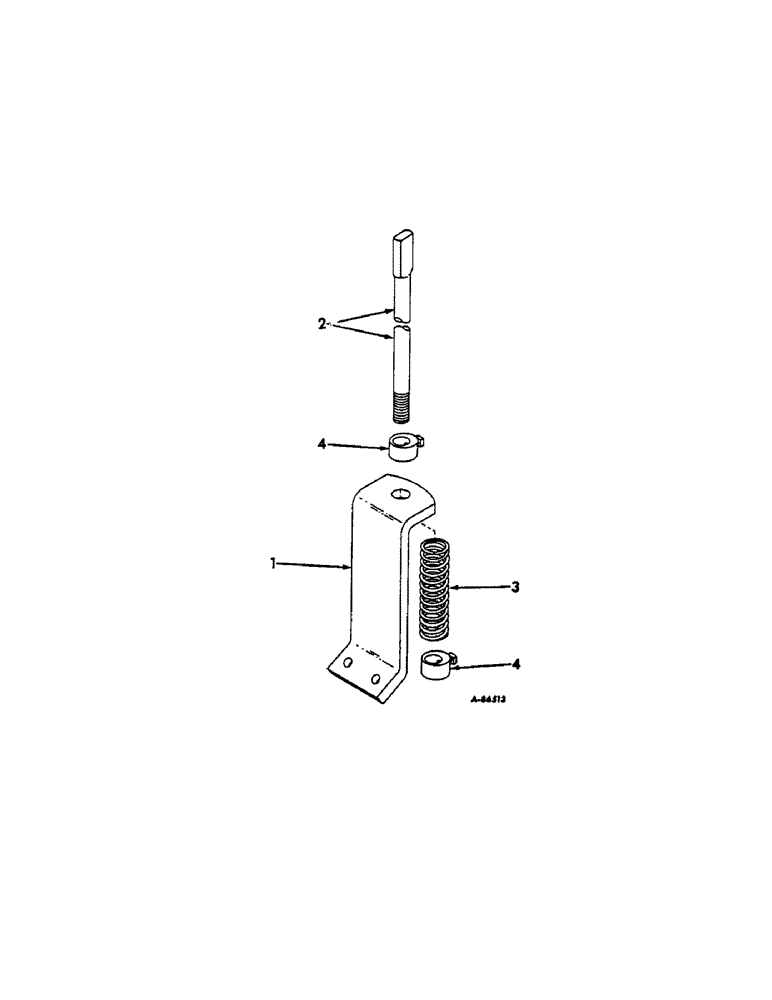

Схема запчастей Case IH 90 - (R-08) - PRESS WHEEL PRESSURE SPRING, ONE PER ROW
2
1
4
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

482612R1

BRACKET, adjustment support

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

482613R1

ROD, adjusting

1шт.

3

PO109

SPRING

compression

1шт.

4

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSY, set

2шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set

2шт.
