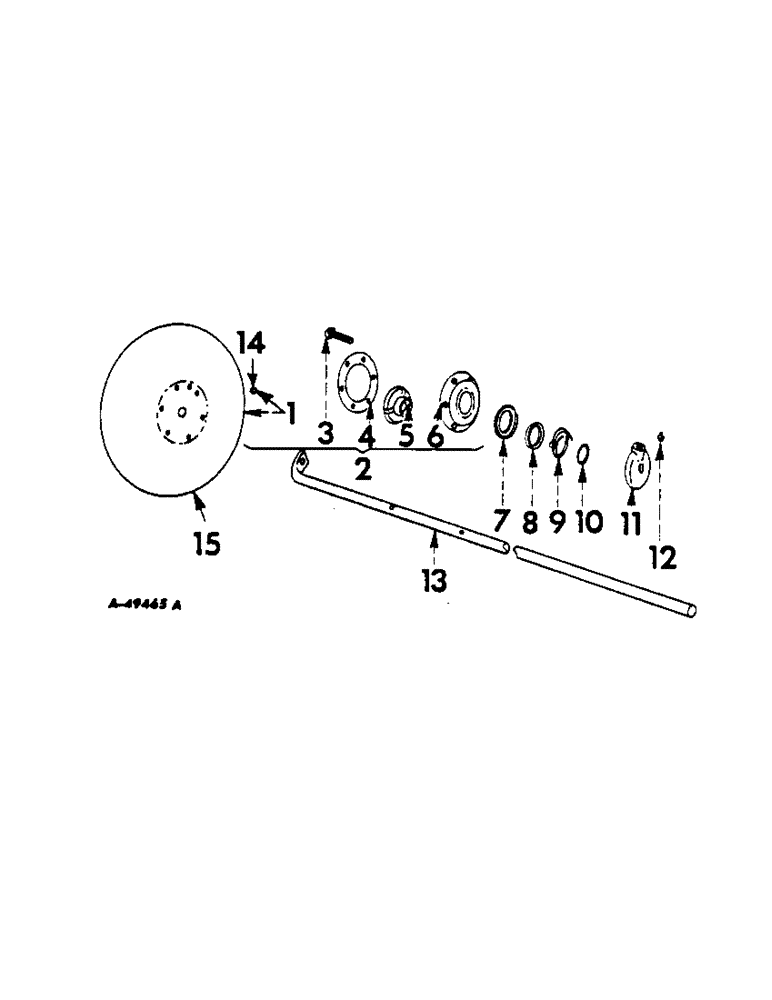

Запчасти Case IH 90 (R-20[A]) - UNIVERSAL MARKER UNIT, DISK-TYPE TWO-ROW

1

NA42304

DISC

DISK ASSEMBLY

2шт.

2

620446R91

DISK ASSY, w/hub and bearing

2шт.

3

620156R1

BOLT

1/2 NF x 2 spec sq-hd

2шт.

120371

NUT,1/2"-20, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

N62375

GASKET

hub and disk

2шт.

5

N2614

BLOCK

bearing

2шт.

6

N2615

HUB

disk

2шт.

13945R1

RIVET,Csk, 1/4" x 5/8"

1/4 x 5/8 rd-hd

12шт.

7

N2616

WASHER

RING, dust

2шт.

8

M10

FELT

WASHER, dust

2шт.

9

620075R1

RETAINER

& SPRING, LH combination felt

1шт.

9

620076R1

RETAINER

& SPRING, RH combination felt

1шт.

10

615991R1

WASHER

1-3/32 x 1-1/2 x 26 ga, between disk hanger and bearing block

2шт.

11

620479R1

CLAMP

HANGER, disk

2шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , In disk hanger 1/8"-27 x .66 lg

2шт.

13

525006R1

SHAFT, marker

2шт.

14

N42900

PLUG, disk

2шт.

15

N42976

DISC

DISK, 13 in.

2шт.
