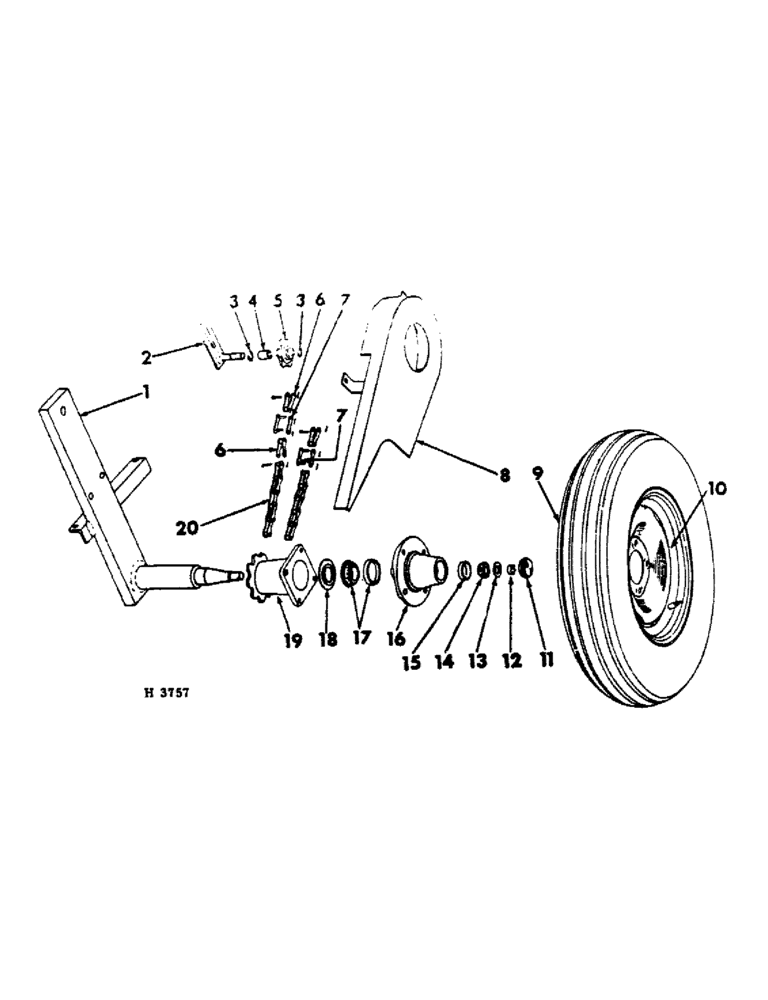

Запчасти Case IH 10 (A-06) - WHEEL AND SPINDLE

1

603331R92

SPINDLE, low wheel axle LH (Regular for 12 x 7 & 13 x 7)

1шт.

1

603333R92

SPINDLE, low wheel axle LH (Regular for 16 x 6, 20 x 6, 16 x 7, 18 x 7, 16 x 8) (Special for 20 x 8 & 16 x 10)

1шт.

1

603335R92

AXLE

SPINDLE, high wheel axle LH (Regular for 24 x 6, 16 x 10 & 20 x 8) (Special for 16 x 7, 18 x 7, 16 x 6, 16 x 8, 12 x 7, 13 x 7 & 20 x 6)

1шт.

1

603332R92

SPINDLE, low wheel axle RH (Regular for 12 x 7 & 13 x 7)

1шт.

1

603334R92

SPINDLE, low wheel axle RH (Regular for 16 x 6, 20 x 6, 16 x 7, 18 x 7, 16 x 8) (Special for 20 x 6, 24 x 6 & 16 x 10) (Shown)

1шт.

1

603336R92

AXLE

SPINDLE, high wheel axle RH (Regular for 24 x 6, 16 x 10 & 20 x 8) (Special for 16 x 7, 18 x 7, 16 x 6, 16 x 8, 12 x 7, 13 x 7 & 20 x 6) (Shown)

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

6шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 X 2-1/4" BOLT

4шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 X 2-1/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

603315R11

SUPPORT ASSY.

ARM, chain tightener

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

3/8" NUT

4шт.

3

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , tightener sprocket #50, .392" Dia, E-Type

4шт.

4

603328R1

BUSHING

chain tightener sprocket

2шт.

5

603327R1

NO LONGER SERVICED

SPROCKET, 6T chain tightener

2шт.

6

456929R91

CHAIN LINK

LINK, offset (Includes 1360D & 1751D, pins)

1шт.

1360D

OFFSET LINK PIN

1шт.

1751D

PACKAGE

1/4 LB PKG C-PIN

1шт.

7

456980R91

CHAIN LINK

LINK, connecting (Including 1751D, pin)

1шт.

1751D

PACKAGE

1/4 LB PKG C-PIN

1шт.

8

603337R91

SHIELD, drive chain LH

1шт.

8

603338R91

SHIELD, drive chain RH (Shown)

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 X 7/8" BOLT

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

TIRE & TUBE, 6.70 x 15" low wheel axle (12 x 7, 13 x 7, 16 x 7 & 16 x 6)

1шт.

9

TIRE AND TUBE, 7.60 x 15" low wheel axle (20 x 6, 24 x 6, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

9

TIRE & TUBE, 7.50 x 20" implement tread or used truck high wheel axle (All sizes) (Opt to use 8.25 x 20")

1шт.

10

455169R92

WHEEL

4.50 x 15" low wheel axle (Opt w/463036R1, wheel)

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 NF X 7/8" WHEEL BOLT

8шт.

10

463036R1

WHEEL (STEERING)

WHEEL, 5.00 x 14" low wheel axle (Opt w/455169R92, wheel)

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 NF X 7/8" WHEEL BOLT

8шт.

10

603329R91

WHEEL

7.00 x 20" high wheel axle

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

9/16-NF X 1" WHEEL BOLT

12шт.

11

602959R1

PLUG

CAP, low wheel axle spindle hub

2шт.

11

663908R1

CAP

high wheel axle spindle hub

2шт.

12

102649

SLOTTED NUT,5/8"-18, G5

NUT, , Low wheel axle spindle 5/8"-18, G5

2шт.

12

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4"-NF slt high wheel axle spindle

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

13

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x 13 ga low wheel axle

2шт.

13

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 x 1-1/2 x 10 ga high wheel axle

2шт.

14

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, low wheel axle outer brg

2шт.

14

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

14

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

High wheel axle outer

2шт.

15

651814R1

BEARING CUP

CUP, low wheel axle outer brg (Regular for 12 x 7, 13 x 7, 16 x 7, 18 x 7, 16 x 6, 16 x 8 & 20 x 6) (Special for 24 x 6, 20 x 8 & 16 x 10)

2шт.

15

371883R1

BEARING CUP

High wheel axle outer (Regular for 24 x 6, 20 x 8 & 16 x 10) (Special for 16 x 7, 18 x 7, 16 x 6, 16 x 8, 12 x 7, 13 x 7 & 20 x 6)

2шт.

16

603344R1

HUB, low wheel (Regular for 12 x 7, 13 x 7, 16 x 7, 18 x 7, 16 x 6, 16 x 8 & 20 x 6) (Special for 24 x 6, 20 x 8 & 16 x 10)

2шт.

16

603305R1

HUB, high wheel (Regular for 24 x 6, 20 x 8 & 16 x 10) (Special for 16 x 7, 18 x 7, 16 x 6, 16 x 8, 12 x 7, 13 x 7 & 20 x 6)

2шт.

17

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

low wheel inner (Regular for 12 x 7, 13 x 7, 16 x 7, 18 x 7, 16 x 6, 16 x 8 & 20 x 6) (Special for 24 x 6, 20 x 8 & 16 x 10)

2шт.

17

459912R91

BEARING ASSY,1.3755" ID x 2.5635" OD x 0.74"

BEARING, high wheel inner (Regular for 24 x 6, 20 x 8 & 16 x 10) (Special for 16 x 7, 18 x 7, 16 x 6, 16 x 8, 12 x 7, 13 x 7 & 20 x 6)

2шт.

18

603061R1

GUIDE

low hub (Regular for 12 x 7, 13 x 7, 16 x 7, 18 x 7, 16 x 6, 16 x 8 & 20 x 6) (Special for 24 x 6, 20 x 8 & 16 x 10)

2шт.

18

603885R1

RETAINER

GUIDE, high hub (Regular for 24 x 6, 20 x 8 & 16 x 10) (Special for 16 x 7, 18 x 7, 16 x 6, 16 x 8, 12 x 7, 13 x 7 & 20 x 6)

2шт.

19

603303R1

DRIVE SPROCKET

SPROCKET, 9T low (Regular for 12 x 7, 13 x 7, 16 x 7, 18 x 7, 16 x 6, 16 x 8 & 20 x 6) (Special for 24 x 6, 20 x 8 & 16 x 10)

2шт.

19

603304R1

SPROCKET ASSY.

SPROCKET, 12T high (Regular for 24 x 6, 20 x 8 & 16 x 10) (Special for 16 x 7, 18 x 7, 16 x 6, 16 x 8, 12 x 7, 13 x 7 & 20 x 6)

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

20

CHAIN, 1-1/4" extended pitch agricultural type wheel drive (For service order 1 - 569089r91, 10 ft chain and for 10 combination & 10 drill w/low wheel axle, less fertilizer, reduce to 35 links, add 2 - 456929R91, offset link & 1 - 456980R91, connecting li

1шт.
