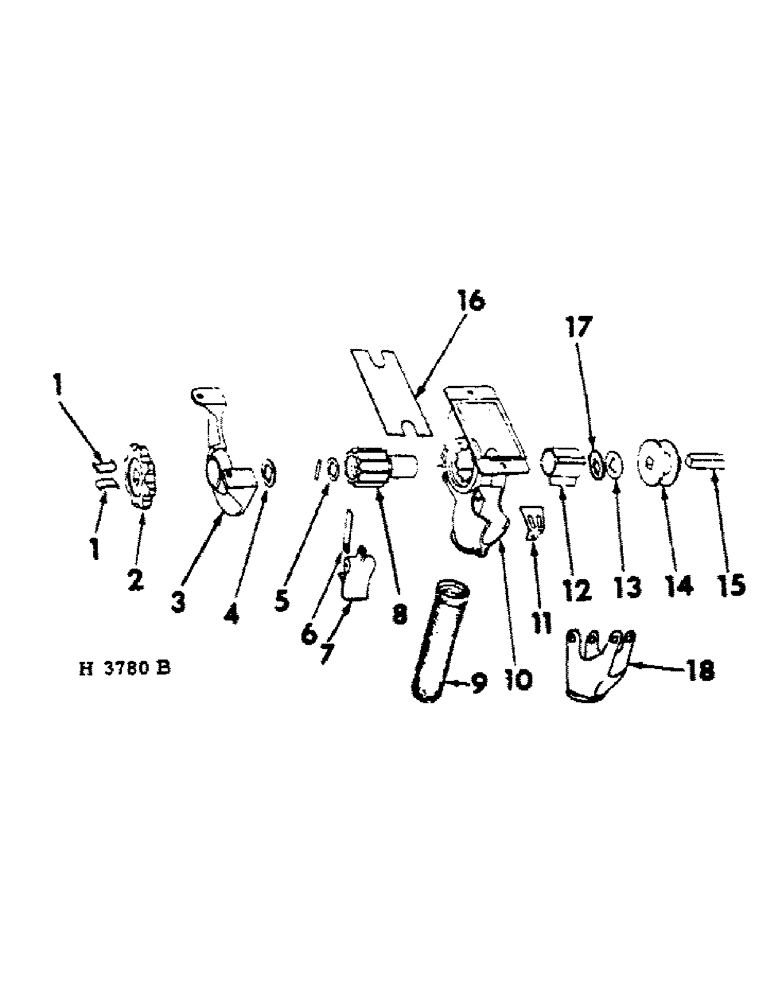

Запчасти Case IH 10 (A-12) - GRAIN FEED SHAFT

1

N11792

CLIP

sprocket retaining (2 per sprocket)

1шт.

2

N1466

SPROCKET, 8T feedshaft driven (1 used 12 x 7 & 13 x 7) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

3

603119R2

HANGER

driven sprocket (1 used 12 x 7 & 13 x 7) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 X 7/8" BOLT (2 used per hanger)

1шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

4

N11791

WASHER

sprocket retaining (1 used per sprocket)

1шт.

5

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

feed roll spg (1 per feed cup)

1шт.

6

603178R1

LATCH

dump bottom (1 per feed cup)

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

7

603108R11

BOTTOM

feed cup dump (Includes 603178R1, latch & 106883 rivet) (1 per feed cup)

1шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16 X 2-1/4" C-PIN

1шт.

8

603111R1

ROLLER

ROLL, feed cup (1 per feed cup)

1шт.

603134R1

PIN,4.76mm OD x 29.37mm L

3/16 X 1-5/32" STRAIGHT PIN

1шт.

9

603263R2

TUBE,1.25" ID, 1.906" OD, 35, 9" Length

single & double disk grain (Double disk only for 16 x 8, 20 x 8 & 16 x 10)

1шт.

9

606146R2

TUBE,1.25" ID, 1.906" OD, 44, 9" Length

single disk grain (16 x 8, 20 x 8 & 16 x 10)

1шт.

Ref #9 606146r2 tube....TOP CLAMP USED ON THIS TUBE IS 604442R91. BOTTOM CLAMP IS PART 604443R1, BUT IS CODED TO USE BULK 12 GAUGE WIRE.

1шт.

10

603295R91

CUP

grain feed (12 used 12 x 7) (13 used 13 x 7) (16 used 16 x 6, 16 x 7, 16 x 8 & 16 x 10) (18 used 18 x 7) (20 used 20 x 6 & 20 x 8) (24 used 24 x 6)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 X 1" BOLT (2 used per feed cup)

1шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

10

603816R91

CUP

grain feed (Including 603112R1, block; 603295R91, cup & 603111R1, roll) (12 used 12 x 7) (13 used 13 x 7) (16 used 16 x 6, 16 x 7, 16 x 8 & 16 x 10) (18 used 18 x 7) (20 used 20 x 6, 20 x 8) (24 used 24 x 6)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

5/16 X 1" BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

606034R1

GUARD

WINDSHIELD, grain feed cup (Special) (1 used per feed cup) (Not required when drill equipped w/fertilizer attachment)

1шт.

12

603112R1

BLOCK

feed cup shut-off (1 per feed cup)

1шт.

13

N11720

WASHER

feed cup (21/32 sq-hole x 1-1/2 x 12 ga) (1 per feed cup)

1шт.

14

NA1340

SPOOL, grain indicator shifter (Prior to 1965 season) (1 used 12 x 7 & 13 x 7) (2 used 16 x 6, 20 x 6, 24 x 6, 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

104073

RIVET

3/16 X 1-1/4" B-HD RIVET

1шт.

15

603167R1

SHAFT, 16 x 6 grain feed

2шт.

15

603168R1

SHAFT, 20 x 6 grain feed

2шт.

15

603169R1

SHAFT, 24 x 6 grain feed

2шт.

15

603170R1

SHAFT, 12 x 7 grain feed

1шт.

15

603171R1

SHAFT, 13 x 7 grain feed

1шт.

15

603172R1

SHAFT, 16 X 7 grain feed

2шт.

15

603173R1

SHAFT, 18 x 7 grain feed

2шт.

15

604362R1

SHAFT, 16 x 8 grain feed

2шт.

15

606378R1

SHAFT, 20 x 8 grain feed

2шт.

15

605130R1

SHAFT, 16 x 10 grain feed

2шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), , 1 per feed cup 3/16" x 1 1/8"

1шт.

16

603677R2

PLATE

feed cup shut-off (Special)

1шт.

17

602106R1

SQ HOLE WASHER

21/32 sq-hole x 1-11/16 x 32 ga (Use as a shim as required between shaft c-pin and N11720, washer)

1шт.

18

815804C1

CUP

grain seed viewing (Available on machine order form in package of 24 cups)

1шт.

NLS

NO LONGER SERVICED

3/16 X 3" C-PIN (2 used per cup)

1шт.
