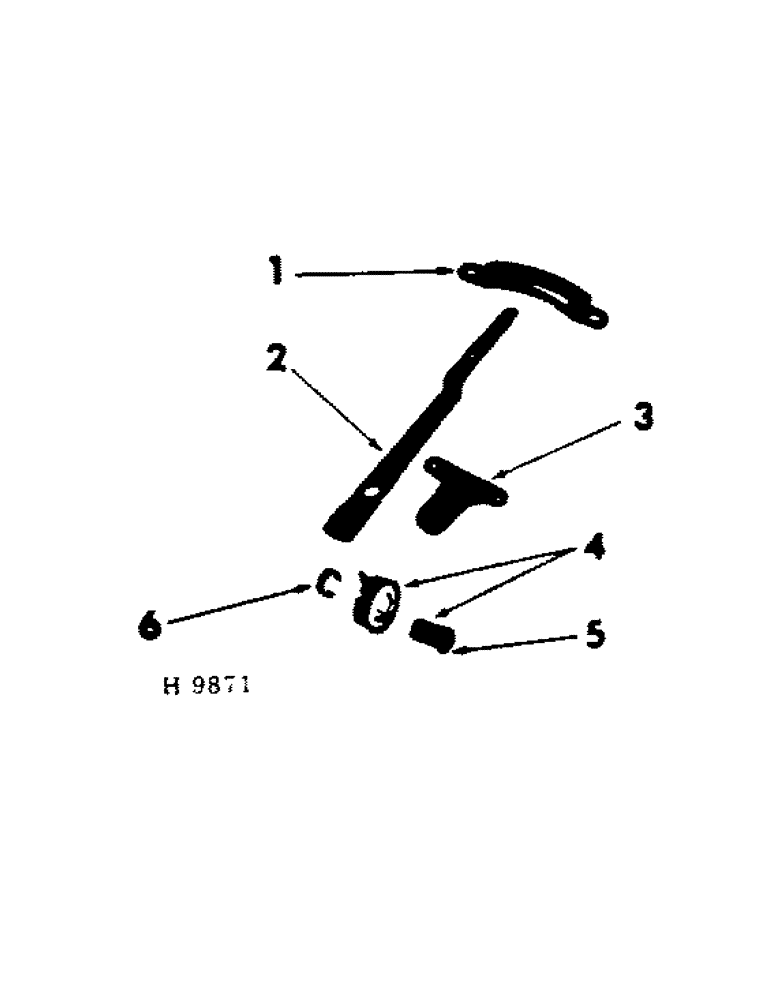

Запчасти Case IH 10 (A-13[1]) - GRAIN FEED SHIFTER, 1965 SEASON AND SINCE

1

603126R1

PLATE, grain indicator (16 x 6, 20 x 6 & 24 x 6)

2шт.

1

603127R1

INDICATOR

PLATE, grain indicator (1 used on 12 x 7 & 13 x 7) (2 used on 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT (2 per plate)

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

2

609381R91

LEVER

grain feed shifter (1 used 12 x 7 & 13 x 7) (2 used on 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

1шт.

142745

NUT, WING

5/16" WING NUT

1шт.

3

603128R1

BRACKET, grain feed shifter (1 used 12 x 7 & 13 x 7) (2 used on 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

15542R1

5/16 X 3/4" NO. 3 PLOW BOLT

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

5/16 X 1" CRG BOLT

1шт.

134238R1

WASHER

11/32 X 1 X 16 GA WASHER

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

124824

NUT,Hex, 5/16" - 18

5/16" JAM NUT

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5/16" NUT

2шт.

4

609384R91

THRUST BEARING

feed shifter (Includes 609388R1, spacer)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 X 3/4 X 16 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

5

609388R1

SPACER

feed shifter housing nylon (1 used 12 x 7 & 13 x 7) (2 used on 16 x 7, 18 x 7, 16 x 8, 20 x 8 & 16 x 10)

1шт.

6

609389R1

SPACER

feed shift brg (1 used 12 x 7 & 13 x 7)

1шт.
