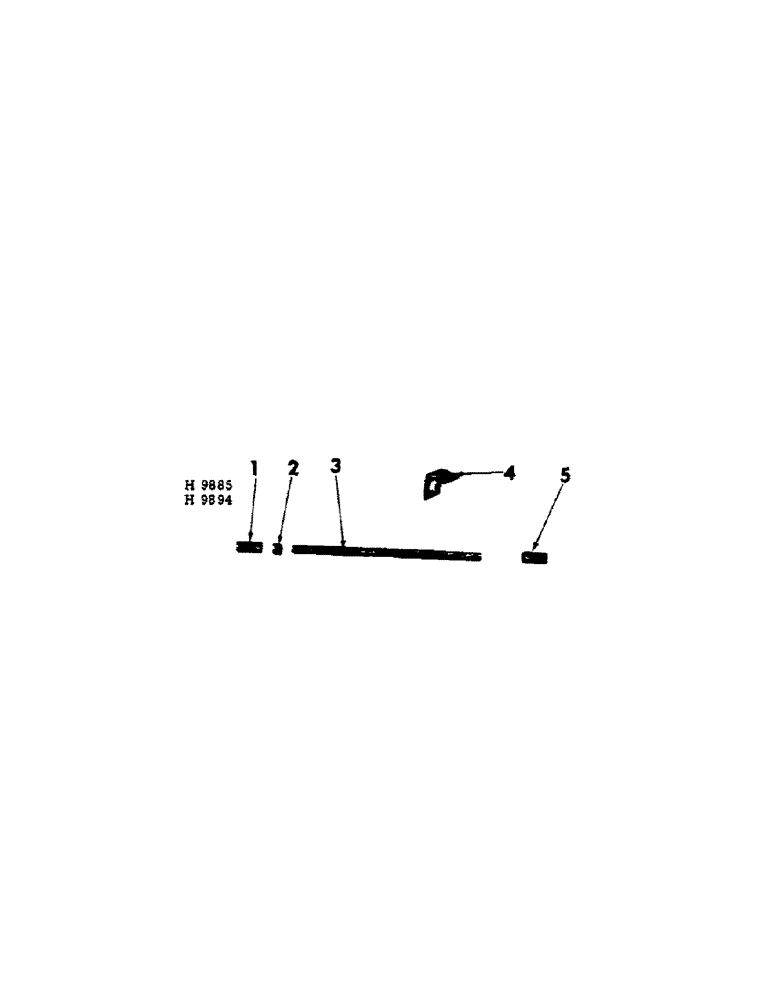

Запчасти Case IH 10 (D-14) - DRAWBAR PIVOT SHAFT

1

609437R1

SPACER, pivot shaft long (Single disk furrow openers)

11шт.

2

355682R1

SPACER,3/4" Pipe x 3/4"

pivot shaft (3 used single disk furrow opener) (2 used hoe furrow opener & double disk furrow opener)

1шт.

3

603157R1

ROD

SHAFT, drawbar pivot

1шт.

Q3501

WASHER

25/32 X 1-1/4 X 16 GA WASHER

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

4

609436R1

ANGLE

pivot shaft support

6шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 X 1" TYPE 2 BOLT

4шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 X 1-1/4" TYPE 2 C-Z BOLT

2шт.

NLS

NO LONGER SERVICED

7/16" C-Z NUT

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

5

603262R1

SPACER

pivot shaft long (Hoe furrow openers & double disk furrow openers)

12шт.
