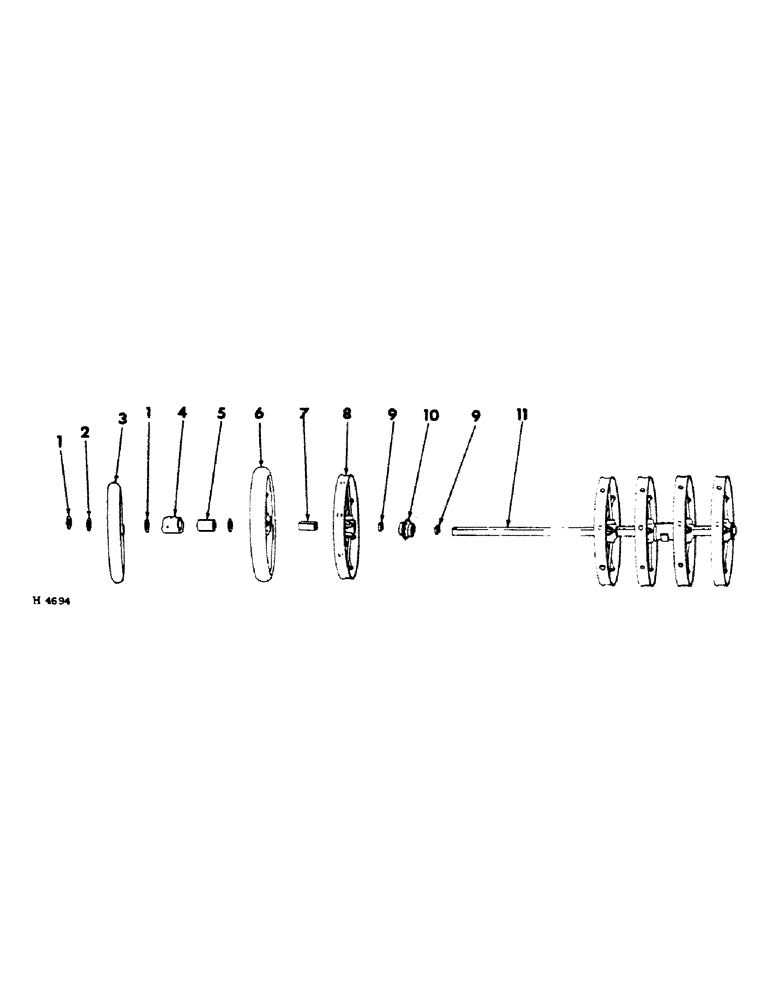

Запчасти Case IH 100 (B-07) - GANG PRESS WHEEL

1

603843R1

SQ HOLE WASHER,32.54mm ID x 69.85mm OD x 3.05mm Thk

1-9/32 sq-hole x 1-3/4 x 11 ga (8 used 10 x 6, 12 x 6, 14 x 6 & 16 x 6) (12 used 24 x 6) (24 used 20 x 7 & 24 x 7)

1шт.

2

604041R1

SQ HOLE WASHER

1-9/32 sq-hole x 2-3/4 x 16 (8 used 10 x 6, 12 x 6, 14 x 6 & 16 x 6) (12 used 24 x 6)

1шт.

3

605082R91

WHEEL

2-1/4" shielded rounded (1 per feed)

1шт.

4

603905R1

BEARING ASSY

BEARING, wheel gang (4 used 10 x 6, 12 x 6, 14 x 6 & 16 x 6) (6 used 24 x 6)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (1 used per brg) 1/8"-27 x .66 lg

1шт.

4

603835R1

ROLLER ASSY.

BEARING, wheel gang (20 x 7 & 24 x 7)

6шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

603900R1

SPACER

TRUNNION, wheel brg (4 used 12 x 6, 14 x 6 & 16 x 6) (6 used 24 x 6)

1шт.

5

603834R1

SPACER

TRUNNION, 7" drill wheel brg (6 used 20 x 7 & 24 x 7)

1шт.

6

604253R2

TYRE/TIRE

TIRE, 2-1/4 x 20" semi-pneumatic (For use w/604042R91, wheel)

1шт.

7

604035R1

TUBE

SPACER, press wheel (3 used 10 x 6) (5 used 12 x 6) (7 used 14 x 6) (9 used 16 x 6) (14 used 24 x 6)

1шт.

7

604036R1

TUBE

SPACER, press wheel (10 used 20 x 7) (14 used 24 x 7)

1шт.

8

604042R91

WHEEL

open spoke press steel (1 per feed)

1шт.

9

604037R1

SPACER

wheel short (20 x 7 & 24 x 7)

2шт.

10

603902R1

DRIVE SPROCKET

SPROCKET, 10T drive

1шт.

11

604476R1

AXLE, 10 x 6 press wheel

2шт.

11

603924R1

AXLE, 12 x 6 press wheel

2шт.

11

603925R1

AXLE, 14 x 6 press wheel

2шт.

11

603926R1

AXLE, 24 x 6 & 16 x 6 press wheel (3 used 24 x 6) (2 used 16 x 6)

1шт.

11

603927R1

AXLE, 20 x7 press wheel LH & RH

2шт.

11

603928R1

AXLE, 20 x 7 press wheel center

1шт.

11

603928R1

AXLE, 24 x 7 press wheel

3шт.

119202

PIN

3/8 X 2-1/4" C-PIN

2шт.
