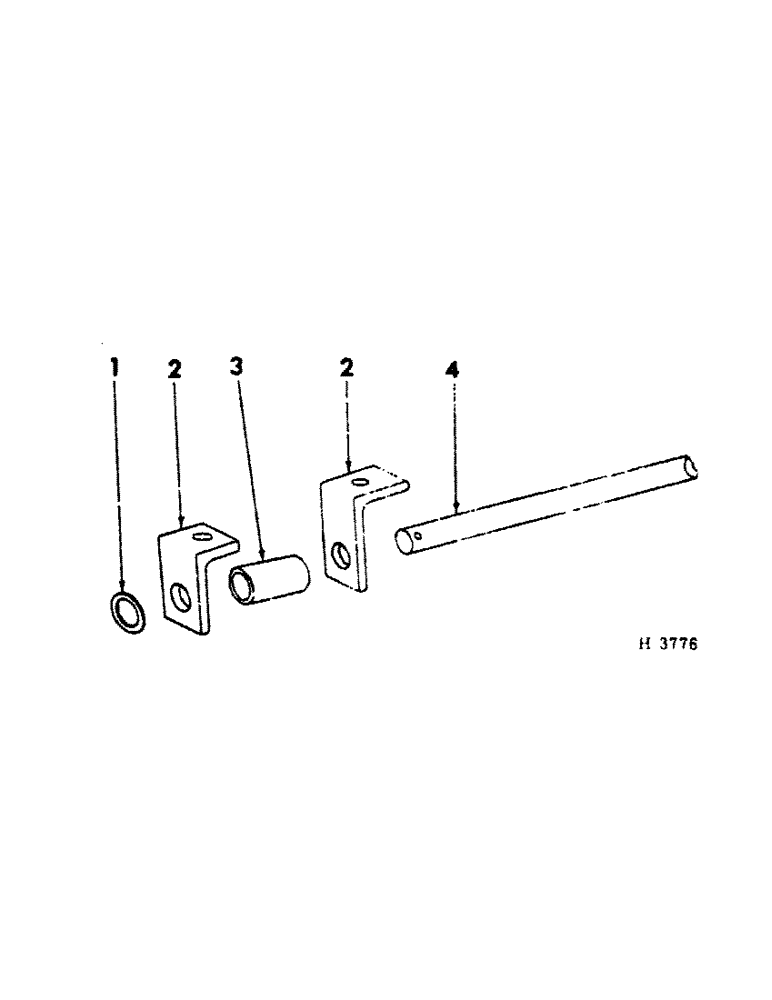

Запчасти Case IH 100 (B-15) - DRAWBAR PIVOT SHAFT

1

178375R1

WASHER

25/32 x 1-1/4 x 16 ga (2 used 10 x 6, 12 x 6, 14 x 6 & 16 x 6) (4 used 24 x 6, 20 x 7 & 24 x 7)

1шт.

2

603149R1

BRACKET, pivot shaft (10 used 10 x 6, 12 x 6, 14 x 6 & 16 x 6) (16 used 24 x 6, 20 x 7 & 24 x 7)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

C13756

SPACER

pivot shaft (3/4 x 1") (2 used 20 x 7 & 24 x 7) (6 used 10 x 6) (7 used 12 x 6) (9 used 14 x 6) (11 used 16 x 6) (18 used 24 x 6)

1шт.

3

603262R1

SPACER

pivot shaft (3/4 x 2") (12 used 20 x 7) (16 used 24 x 7)

1шт.

4

603154R1

SHAFT, drawbar pivot (10 x 6)

1шт.

4

603910R1

SHAFT, drawbar pivot (12 x 6 & 24 x 6), Serial Range: (Prior-1960)

1шт.

4

603155R1

SHAFT, drawbar pivot (1 used 12 x 6 & 2 used 24 x 6) (1960 & since)

1шт.

4

609159R1

SHAFT, drawbar pivot (16 x 6)

1шт.

4

603911R1

SHAFT, drawbar pivot (14 x 6)

1шт.

4

603912R1

SHAFT, drawbar pivot (2 used 20 x 7)

1шт.

4

603913R1

SHAFT, drawbar pivot (24 x 7), Serial Range: (Prior-1960)

1шт.

1

603156R1

SHAFT, drawbar pivot (2 used 24 x 7) (1960 and since)

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.
