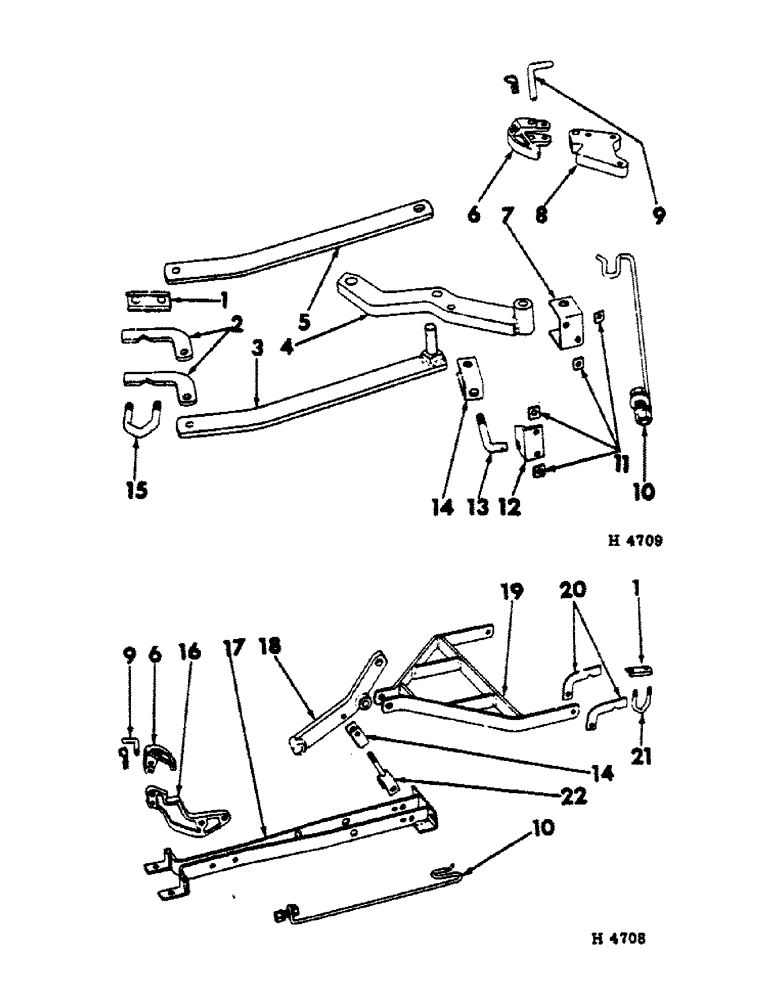

Запчасти Case IH 100 (B-20) - HYDRAULIC LIFT PARTS

1

603393R1

CHANNEL

PLATE, lift arm clamp

1шт.

2

604222R1

ARM

lift

2шт.

5530S

PIN

5/8 X 1-5/8" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

604224R11

LINK, connecting (Not 16 x 6)

1шт.

3

609178R91

LINK, connecting (16 x 6)

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

4

604207R11

ARM, rocker

1шт.

598834R1

3/4 X 3-1/2" STD-HD-DLD PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

5

609177R1

BRACE, hydraulic lift (16 x 6)

1шт.

6

526263R1

RETAINER

hydraulic cylinder

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

1/2 X 2-1/4" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

7

604221R1

BRACKET, rocker arm

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

604209R1

BRACKET, lift pivot

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 X 2" BOLT

2шт.

3490B

HEADED PIN,1/2" x 2 1/4"

1/2 X 2-1/4" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

600829R2

ROD

PIN, cylinder locking

1шт.

599477R1

3/16" QUICK-ATTACHABLE C-PIN

1шт.

10

651793R2

SUPPORT

hyd hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2" BOLT

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 X 1-1/2 X 11 GA WASHER

1шт.

11

603901R1

WASHER

special tapered

4шт.

12

604225R1

ANGLE

locking link pivot HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

2шт.

120377

NUT,3/8" - 16, Gr 5

Hydraulic lift parts (24 X 6, 20 X 7 & 24 X 7) 3/8"-16, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Hydraulic lift parts (24 X 6, 20 X 7 & 24 X 7) 3/8"

2шт.

13

603423R1

LINK

hyd locking HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

1шт.

105610

NUT

5/8" SQ-NUT HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

1шт.

21782R1

WASHER

21/32 X 1-1/2 X 16 GA WASHER HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Hydraulic lift parts (24 X 6, 20 X 7 & 24 X 7) 1/8" x 1 1/4"

1шт.

14

603426R1

LOCK, rocker arm HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

1шт.

15

603422R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT, rockershaft HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8" NUT HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Hydraulic lift parts (24 x 6, 20 x 7 & 24 x 7) 5/8"

2шт.

16

602951R1

ARM

BRACKET, cylinder mounting HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8 X 2-1/4" BOLT HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Hydraulic lift parts (24 x 6, 20 x 7 & 24 x 7) 5/8"

2шт.

17

604228R91

FRAME, hydraulic lift PARTS (24 X 6, 20 X 7 & 24 X 7)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT, HYDRAULIC LIFT PARTS (24 x 6, 20 x 7 & 24 x 7)

2шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 X 3-1/2" BOLT HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

2шт.

120377

NUT,3/8" - 16, Gr 5

Hydraulic lift parts (24 X 6, 20 X 7 & 24 X 7) 3/8"-16, G5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Hydraulic lift parts (24 X 6, 20 X 7 & 24 X 7) 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Hydraulic lift parts (24 X 6, 20 X 7 & 24 X 7) 3/8"

3шт.

120384

WASHER,1/2"

LOCK, , Hydraulic lift parts (24 X 6, 20 X 7 & 24 X 7) 1/2"

2шт.

18

604208R11

ARM, rocker HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

1шт.

11100P

7/8 X 3-1/2" STD-HD-DLD PIN HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), , Hydraulic lift parts (24 X 6, 20 X 7 & 24 X 7) 1/4" x 1 1/4"

2шт.

19

604229R91

YOKE, hydraulic lift (24 x 6) PARTS , 20 X 7 & 24 X 7)

1шт.

19

604230R91

YOKE, hydraulic lift (20 x 7 & 24 x 7) PARTS (24 X 6, )

1шт.

20

604105R1

ARM, lift HYDRAULIC PARTS (24 X 6, 20 X 7 & 24 X 7)

4шт.

5530S

PIN

5/8 X 1-5/8" STD-HD-DLD PIN HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , Hydraulic lift parts (24 x 6, 20 x 7 & 24 x 7) 3/16" x 1"

1шт.

21

603393R1

CHANNEL

U-BOLT, rockshaft (24 x 6, 20 x 7 & 24 x 7) HYDRAULIC LIFT PARTS

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8" NUT HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Hydraulic lift parts (24 x 6, 20 x 7 & 24 x 7) 5/8"

2шт.

22

604227R91

BRACKET, hydraulic locking LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

1шт.

PO25465

5/8 X 3-3/8" STD-HD-DLD PIN HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

Hydraulic lift parts (24 X 6, 20 X 7 & 24 X 7) 3/16" x 1 1/2"

1шт.

105610

NUT

5/8" SQ-NUT HYDRAULIC LIFT PARTS (24 X 6, 20 X 7 & 24 X 7)

1шт.
