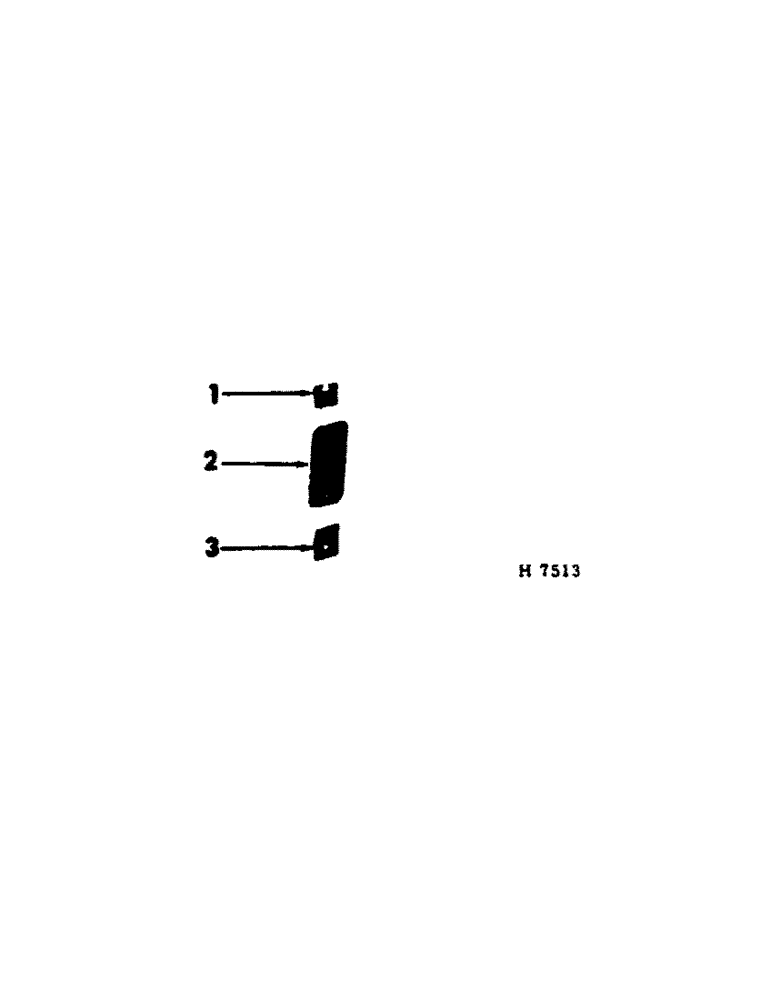

Запчасти Case IH 100 (B-02[1]) - SEED VISION HOPPER WINDOW

1

603229R1

RETAINER, window top

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2" SLT-RD-HD SCREW

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

603264R1

GLASS

WINDOW, seed vision

2шт.

3

604620R1

RETAINER, window bottom

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2" SLT-RD-HD SCREW

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
