(E-45[A]) - HYDRAULIC EQUIPMENT, FOR USE WITH DUPLEX HITCH, FOR FOUR-ROW

Запчасти Case IH 250 (E-45[A]) - HYDRAULIC EQUIPMENT, FOR USE WITH DUPLEX HITCH, FOR FOUR-ROW

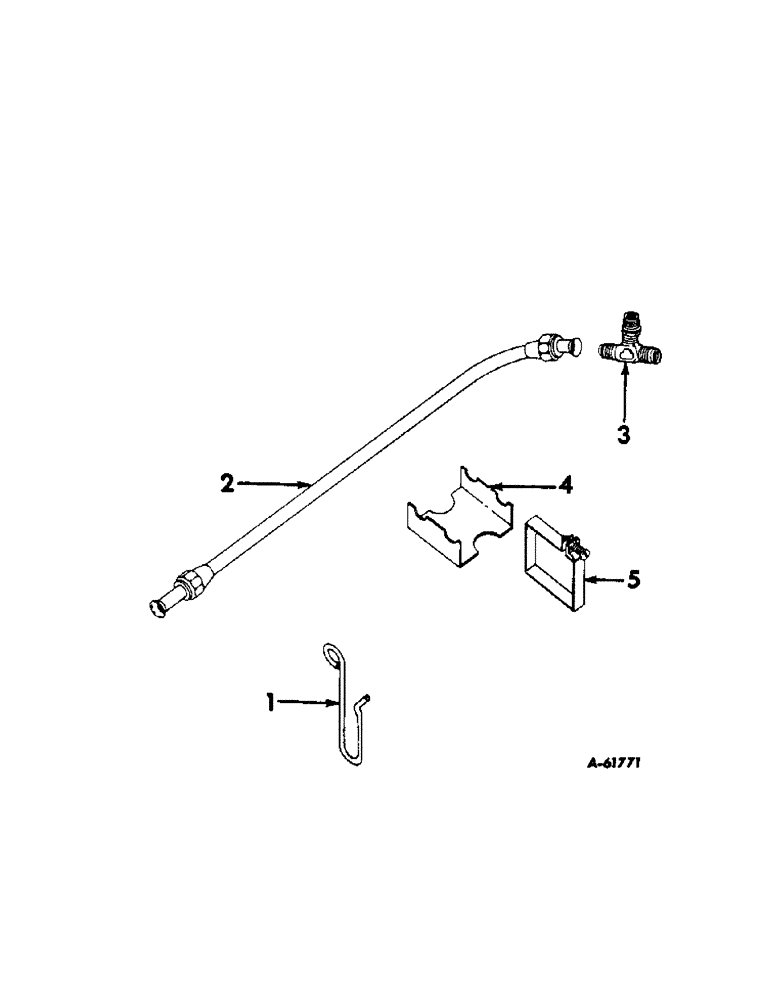

Схема запчастей Case IH 250 - (E-45[A]) - HYDRAULIC EQUIPMENT, FOR USE WITH DUPLEX HITCH, FOR FOUR-ROW
1
3
2
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

463525R1

SUPPORT, flexible hose

1шт.

BOLT W/NUT, 1/2 x 3-3/4 mach

1шт.

WASHER, 1/2 lock

1шт.

WASHER, 17/32 x 1-1/4 x 11 ga

1шт.

2

463510R91

TUBE ASSEMBLY, hydraulic

1шт.

3

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

hydraulic 37 deg flared

1шт.

4

463526R1

SUPPORT, hydraulic tube

1шт.

5

652382R91

CLAMP, hydraulic tube

1шт.
