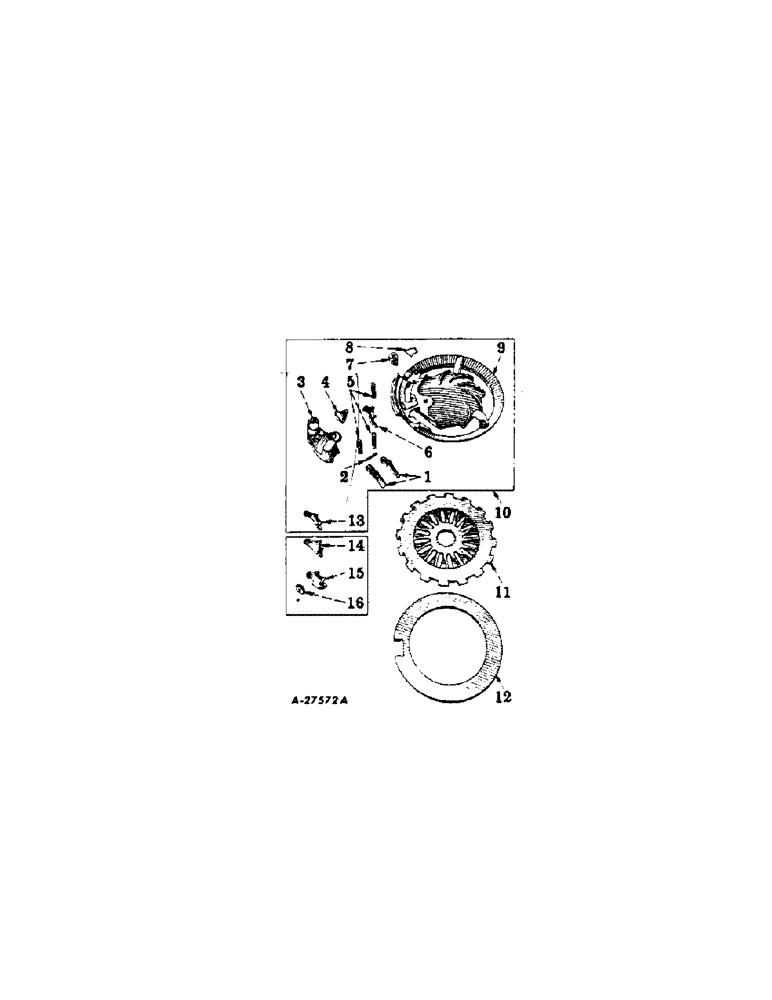

Запчасти Case IH 251 (X-15[A]) - CORN AND SEGMENTED BEET SEED PLANTING EQUIPMENT, FOR COMBINATION HOPPER

621737R93

BOTTOM

CORN PLANTING EQUIPMENT, consists of, (1) corn planting equipment 622186R95, (1) carton 2 seed plates, includes filler ring if required

1шт.

622222R92

CORN PLANTING EQUIPMENT, consists of, (2) corn planting equipment 622186R95, (2) cartons 4 seed plates, includes filler rings if required

1шт.

624195R91

SEGMENTED BEET SEED PLANTING EQUIPMENT, consists of, (2) segmented beet seed planting equipment 624197R91, (2) cartons 4 seed plates w/filler rings

1шт.

624197R92

SEGMENTED BEET SEED PLANTING EQUIPMENT

1шт.

622186R97

BOTTOM

CORN PLANTING EQUIPMENT, consists of parts listed below, less seed plates, filler ring and those parts marked special

1шт.

1

622184R91

PAWL

S ASSY, inner and outer cut-off

2шт.

1

622278R91

JAW

PAWLS ASSY, inner and outer cut-off, for use w/segmented decorticated beet seed plates, special

2шт.

2

2000A

PIN, cut-off pawl hinge

2шт.

3

621727R3

CAP

cut-off and knocker

2шт.

14994R11

BOLT,5/16" - 18 x 3/4"

W/NUT, 5/16-18NC x 3/4 crg

2шт.

4

621728R2

SEAT

adjusting knocker

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20NC x 1/2 slotted-rd-hd mach

2шт.

Q391

WASHER

9/32 ID x 5/8 OD x 18 ga plain

2шт.

5

2064A

SPRING

cut-off and knocker, .445 in. OD, 1-5/8 long, 12 coils

6шт.

6

464336R11

KNOCKER

ARM, roller knocker, 1960 and since

2шт.

6

1118AB

PAWL, knock-out, for corn and beans, order 464336R11, Serial Range: 1955-1960

2шт.

7

622124R3

HOLDER

RETAINER, filler ring

2шт.

114380

NUT

1/4-20NC sq

2шт.

470-12520

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

1/4-20NC x 1-1/4 slotted-fl-hd mach

2шт.

114616

WASHER

1/4 lock

2шт.

8

13607AB

HINGE

GATE, hinge

2шт.

9

BOTTOM, hopper, order 622186R94 or 624197R91 ref. no. 10

1шт.

10

622186R97

BOTTOM

ASSY, hopper, corn, etc

2шт.

10

624197R92

BOTTOM ASSY, hopper, segmented beet seed

2шт.

11

PLATE, seed, see seed plate section

1шт.

12

RING, filler, see seed plate section

1шт.

13

3460AC

KNOCKER

PAWL, knock-out, fo rsorghum, kaffir, corn, maize, etc.

2шт.

14

1223AB

PAWL

knick-out, special, see note

1шт.

15

43169AA

ARM

W/STUD ASSY, roller knocker, special, see note

2шт.

16

3616AA

KNOCKER

tooth roller, for 82 cell plate, special, see note

2шт.

464259R1

ROLLER

KNOCKER, roller

2шт.
