(F-24) - SIDE PLATES, DRILL PLANTING

Запчасти Case IH 488 (F-24) - SIDE PLATES, DRILL PLANTING

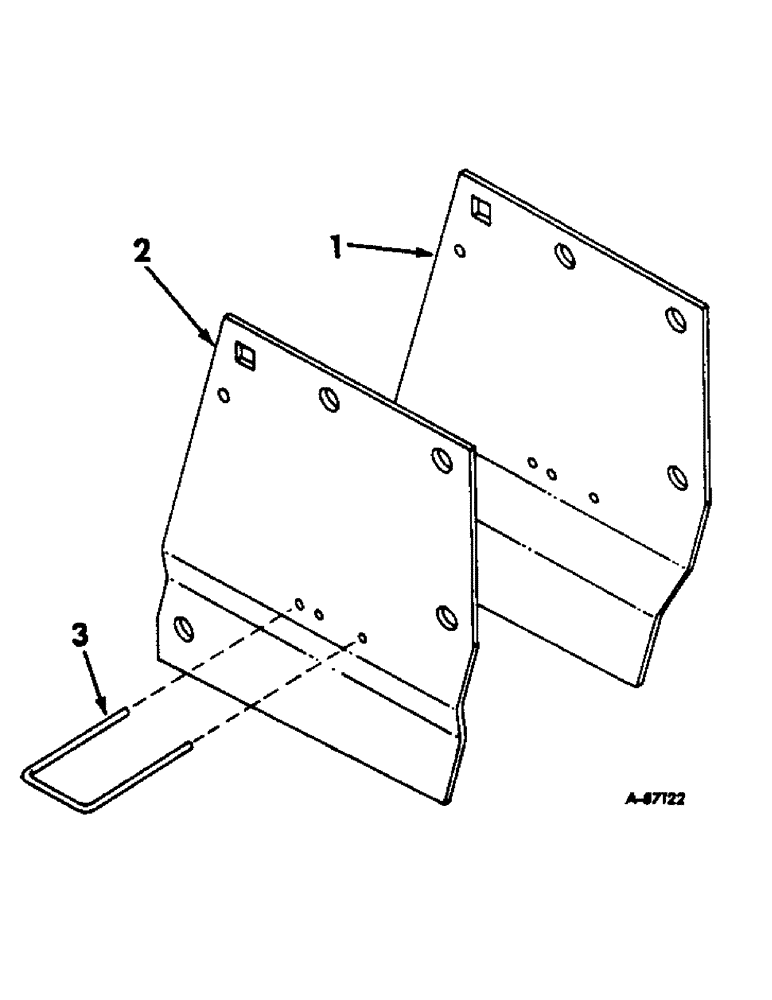

Схема запчастей Case IH 488 - (F-24) - SIDE PLATES, DRILL PLANTING
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

472239R3

PLATE, rail side RH, 4 for 489 planter, 6 for 689 planter

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/2 hex-hd mach, 8 for 489 planter, 12 for 689 planter

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 8 for 489 planter, 12 for 689 planter 1/2"

1шт.

102637

NUT,1/2"-13, G5

8 for 489 planter, 12 for 689 planter 1/2"-13, G5

1шт.

2

472238R3

PLATE, rail side LH, 4 for 489 planter, 6 for 689 planter

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/2 hex-hd mach, 8 for 489 planter, 12 for 689 planter

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 8 for 489 planter, 12 for 689 planter 1/2"

1шт.

102637

NUT,1/2"-13, G5

8 for 489 planter, 12 for 689 planter 1/2"-13, G5

1шт.

3

486146R1

WIRE, seed tube anchor, 4 for 489 planter, 6 for 689 planter

1шт.
