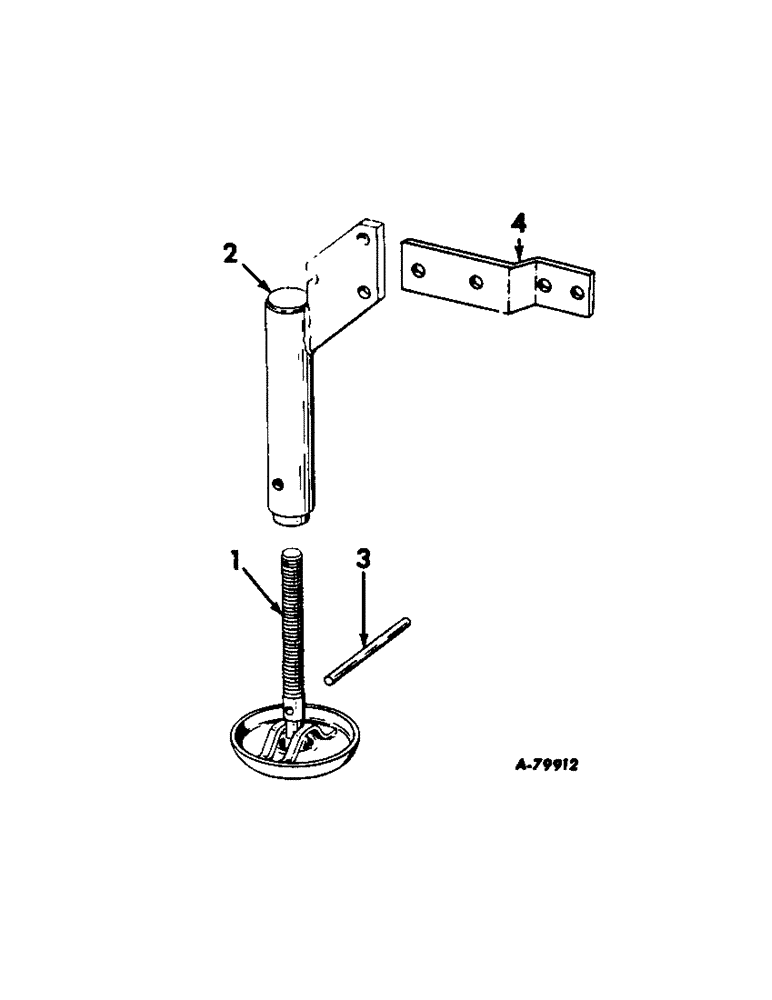

Запчасти Case IH 612 (H-10) - JACK STAND ATTACHMENT

1

462817R91

BASE ASSY, jack

1шт.

2

464698R91

STAND ASSY, jack

1шт.

H2808

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 std-hd

2шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

3

460382R1

HANDLE, jack stand

1шт.

142358

PIN

1/4 x 1-1/2 groov

1шт.

4

471951R1

SUPPORT, jack stand

1шт.

17652R1

BOLT, 3/4-10 x 3-1/4 hex-hd mach

1шт.

17678R1

BOLT, 3/4-10 x 3-1/2 hex-hd mach

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
