(A.50.A[03]) - ELECTRICAL - HARNESS, AFS MONITOR/ CONTROLLER SYSTEM - POTENTIOMETER MNT - RIGID TRAILING W/ V-DRIVE

Запчасти Case IH 1200 (A.50.A[03]) - ELECTRICAL - HARNESS, AFS MONITOR/ CONTROLLER SYSTEM - POTENTIOMETER MNT - RIGID TRAILING W/ V-DRIVE A - Distribution Systems

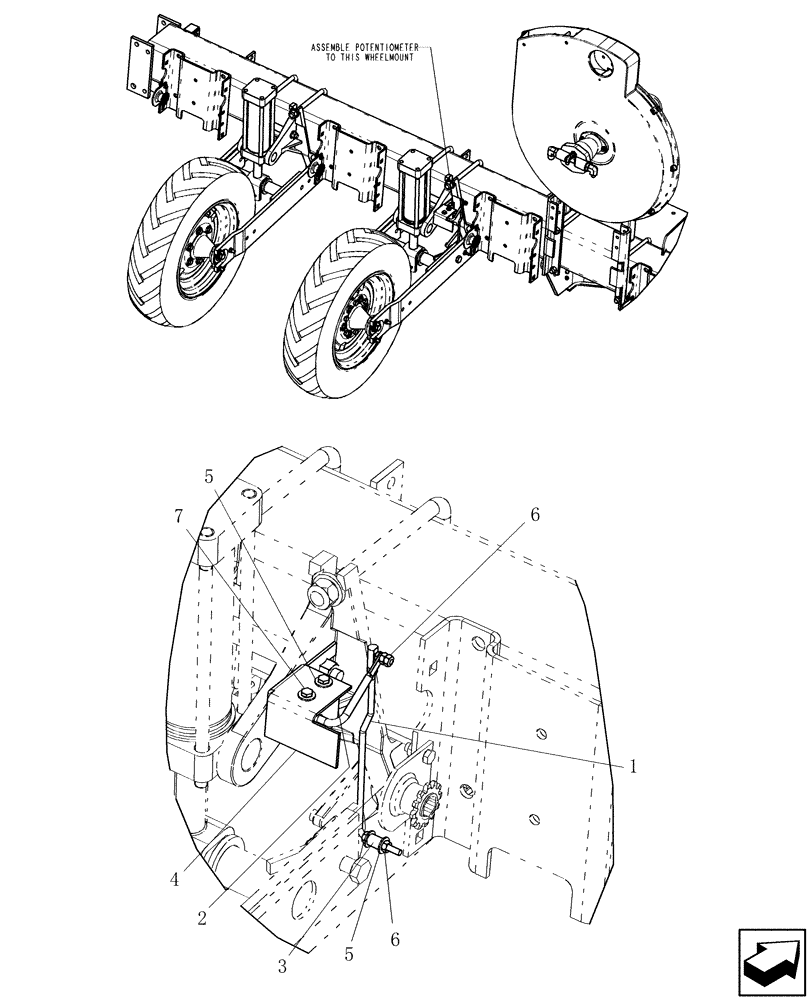

Схема запчастей Case IH 1200 - (A.50.A[03]) - ELECTRICAL - HARNESS, AFS MONITOR/ CONTROLLER SYSTEM - POTENTIOMETER MNT - RIGID TRAILING W/ V-DRIVE A - Distribution Systems
3
5
6
4
5
6
1
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87421865

LINK

Potentiometer

1шт.

2

404202A1

SENSOR

rotary position

1шт.

3

87421089

SPACER

Link Potentiometer

1шт.

4

87426656

BRACKET

Mount, Potentiometer

1шт.

5

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

6

86509309

NUT,1/4"-28, G5

4шт.

7

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.
