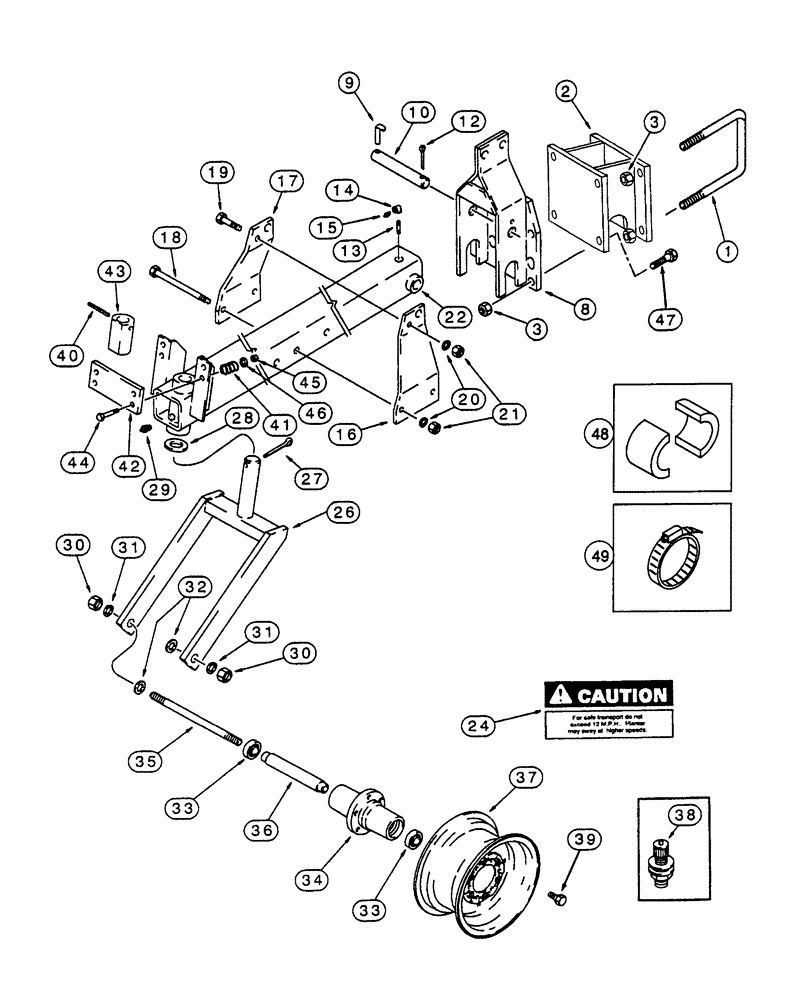

Запчасти Case IH 1200 (D.13.B[01]) - LIFT ASSIST WHEELS - RIGID MOUNTED AND 12 ROW MOUNTED STACKER (BEFORE 09/08/2002) D - Travel

1

58152C2

U-BOLT,U, 1" - 8 x 231mm

BOLT "U" us 1"-8 x 7" wide x 9" deep, 1 3/4'' thread

4шт.

2

313803A1

BRACKET

assist wheel spacer

2шт.

3

9849633

NUT,1"-8, G5

8шт.

8

149556C2

BRACKET

assist wheel pivot

2шт.

9

491601R3

PIN

pivot lock "L"

2шт.

10

100054C2

PIN,38.1mm OD x 251mm L

2шт.

12

86624071

COTTER PIN,1/2" x 2"

2шт.

13

221-1109

PIPE,Nipple, 1/8" NPT x 2"

2шт.

14

105412

ELBOW,90 Degree, 1/8" NPT

2шт.

15

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

16

149558C2

SUPPORT

RT

2шт.

17

149557C2

SUPPORT

LT

2шт.

18

9846394

BOLT,Hex, 3/4" - 10 x 7", Gr 8

4шт.

19

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

20

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

6шт.

21

280954

NUT,3/4"-10, G5

6шт.

22

1267964C94

TUBE,134 mm Length

with decal

2шт.

24

1264465C1

PRODUCT GRAPHIC

caution, for safe transport

2шт.

26

222679A1

YOKE

UNIVERSAL JOINT YOKE assist wheel pivot

2шт.

27

87575

COTTER PIN,3/8" OD x 2.5" OAL

1шт.

28

462997R2

WASHER

wear

2шт.

29

86624016

LUBE NIPPLE,3/16" x .47 lg, Drive

2шт.

30

9849633

NUT,1"-8, G5

4шт.

31

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

4шт.

32

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

4шт.

33

1973497C1

BALL BEARING,30mm ID x 62mm OD x 24mm W

ball

4шт.

34

541757R1

HUB

6 bolt

2шт.

35

541759R3

ROD

axle

2шт.

36

541758R1

TUBE

spacer

2шт.

37

481344R91

WHEEL

14" x 8"

2шт.

38

810768C1

VALVE

tire stem VS/936

2шт.

39

277538A1

BOLT,1/2" - 20 x 1.42"

hex conical, 1/2"-20 x 1 5/32"

12шт.

40

86624086

PIN,5/8" x 3", Coiled

2шт.

41

137969A1

SPRING

die 1 1/4" od x 5/8" id x 2" long

8шт.

42

137881A1

BAR

cam follower

2шт.

43

222677A1

CAM

snubber

2шт.

44

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

8шт.

45

85700693

NUT,5/8" - 11, Gr C

8шт.

46

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

8шт.

47

426-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

4шт.

48

96358C1

STOP

cylinder 2 1/2" od x 1 3/8" id

1шт.

49

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

1шт.
