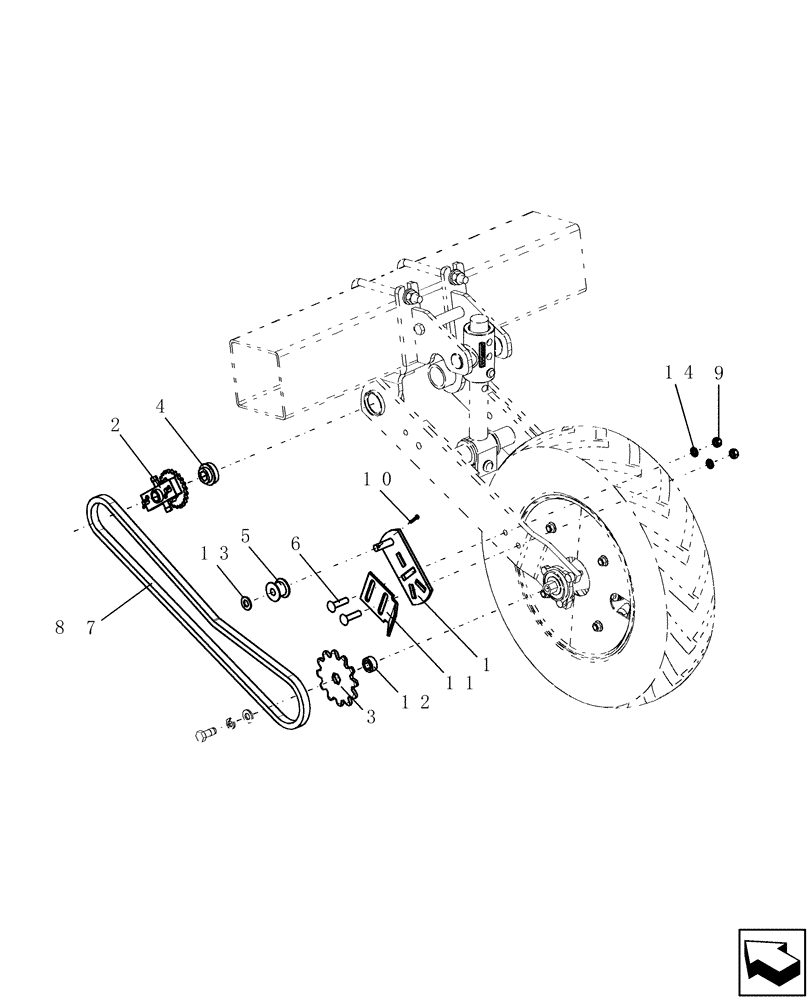

Запчасти Case IH 1200 (D.13.B[23]) - DRIVE WHEEL CONVERSION - DUAL ARM, MOUNTED STACKER D - Travel

1

96140C3

PLATE

drive wheel idler

1шт.

2

1277925C92

RATCHET

23 tooth LH

1шт.

3

1277737C1

SPROCKET

12 tooth

1шт.

4

134181C92

BALL BEARING,2.125" OD x 0.046"

ball, 7/8" hex bore

1шт.

5

1277726C1

ROLLER,48mm OD x 34mm L

idler

1шт.

6

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

2шт.

7

1277740C91

CHAIN (AG)

A2050 main drive (Trail), use 55 links from 569089R91 bulk chain plus 1-1277928C91 connecting link

1шт.

8

1277740C91

CHAIN (AG)

A2050 main drive (Trail), use 55 links from 569089R91 bulk chain plus 1-1277928C91 connecting link

1шт.

8

569089R91

CHAIN (AG),10' L, 1.0" Pitch

#2050 - 10' d/p roller

1шт.

8

1277928C91

LINK

connecting #2050

1шт.

9

280431

NUT,1/2"-13, G5

2шт.

10

394818

COTTER PIN,M5 x 25

1шт.

11

256695A1

SCRAPER

chain

1шт.

12

90376C2

SPACER

sprocket

1шт.

13

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

2шт.
