(F.10.B[02]) - GULL WING ATTACHMENT LINKAGE - 12 ROW NARROW ASN CBJ036001

Запчасти Case IH 1200 (F.10.B[02]) - GULL WING ATTACHMENT LINKAGE - 12 ROW NARROW ASN CBJ036001 F - Frame Positioning

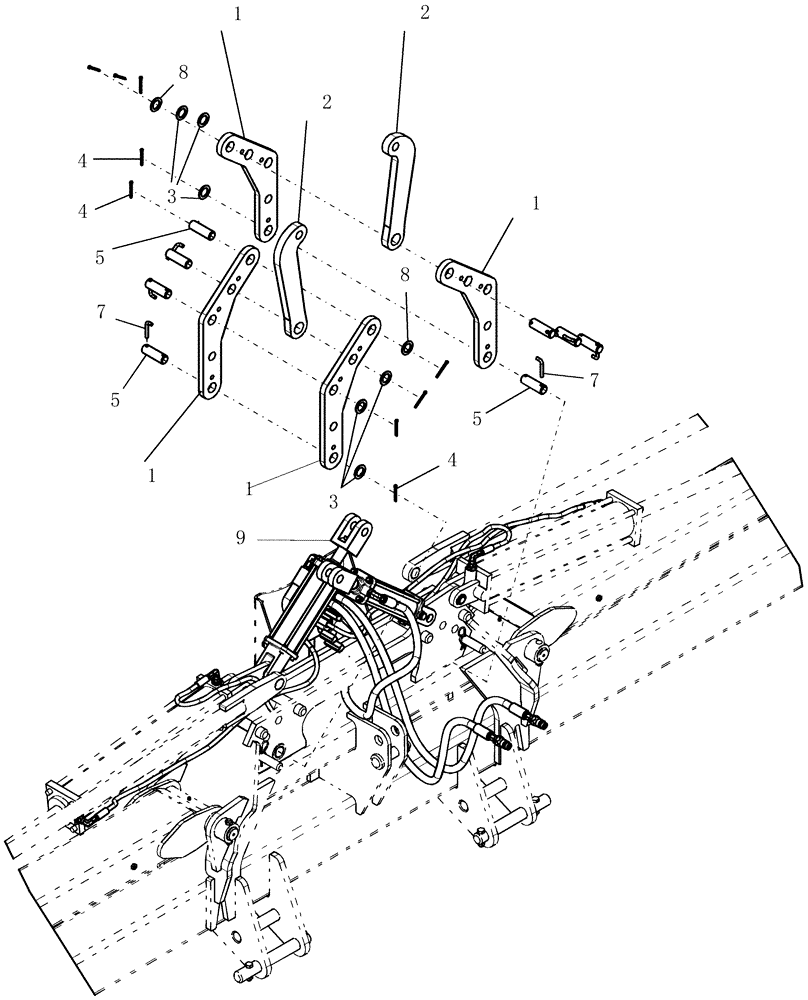

Схема запчастей Case IH 1200 - (F.10.B[02]) - GULL WING ATTACHMENT LINKAGE - 12 ROW NARROW ASN CBJ036001 F - Frame Positioning
2
7
5
2
8
1
9
7
8
1
4
4
1
4
3
1
5
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87688775

PIVOT

gull wing rotational

4шт.

2

87630541

PIVOT

gull wing float

2шт.

3

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

6шт.

4

88182

COTTER PIN,1/4" OD x 2" L

9шт.

5

87565223

PIN

31.7 x 70.3 mm hardened

8шт.

7

408033A1

PIN

J lock 1/2" x 3 3/8"

7шт.

8

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

2шт.

9

87671455

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

2 1/2" x 8", 3000 psi, no pins

2шт.
