1
87504800
KIT
frame, 6 row trailing planter
1шт.
6 Row Narrow
1шт.
2
96208C3
TOW BAR
with decals
1шт.
3
1279163C1
CLEVIS COUPLING
safety chain
1шт.
4
280119
BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5
1шт.
5
86624159
WASHER,0.78" ID x 2" OD x 0.18" Thk
1шт.
6
1250748C2
SPACER
2шт.
7
281036
BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5
4шт.
8
86624162
WASHER,0.81" ID x 1.5" OD x 0.18" Thk
4шт.
9
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
6шт.
10
280954
NUT,3/4"-10, G5
4шт.
11
1279040C1
CLEVIS
hitch
1шт.
12
100682C3
CHAIN (AG)
10,000 lb safety, Years: -01-MAR-06
1шт.
12
87398923
CHAIN
safety 10,100 lb, Start Year: 01-APR-06
1шт.
13
R52105
WASHER,19.45mm ID x 63.5mm OD x 6mm Thk
19.45 mm id x 63.5 mm od
1шт.
14
1279237C1
SUPPORT
hose
2шт.
15
137098C1
SUPPORT
bracket, pump mounting
1шт.
16
119354C1
JACK
side crank
1шт.
17
1277850C1
HITCH PIN,36.88mm OD x 239mm L
Assy
1шт.
18
270184
LINCH PIN,6.35mm OD
1/4" x 1-3/4", Klik
1шт.
19
1330108CX
SEAL,304.8mm L
Trim Edge Black, 250' Roll
1шт.
20
86639566
NUT,5/8"-11, GB
2шт.
21
1330108CX
SEAL,304.8mm L
Trim Edge Black, 250' Roll
1шт.
22
404915A1
SUPPORT
hose assembly
1шт.
23
1250812C1
U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L
us 5/8"-11 x 7" x 6 1/4", G5, 2" thread
1шт.
24
280374
NUT,Hex, 5/8" - 11, Gr 5
2шт.
25
382110A1
CONTACT HOUSING
cap, Cole Hersee seven pin
2шт.
26
9707580
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
2шт.
27
80682
LOCK WASHER,1/4"
2шт.
28
7770
NUT,Hex, 1/4 - 20, Cl 5
2шт.
29
87381
WASHER,0.81" ID x 1.47" OD x 0.13" Thk
2шт.
30
1277910C2
CAUTION DECAL
1шт.
Not Shown
1шт.
31
220447A1
WARNING DECAL
Avoid Injury
1шт.
Not Shown
1шт.
32
220321A1
WARNING DECAL
Non-Power Implement
1шт.
Not Shown
1шт.
33
192848A2
DECAL
Case IH 70 mm logo
2шт.
Not Shown
1шт.
33
86626471
EMBLEM
Case IH 70 mm logo
2шт.
Not Shown
1шт.

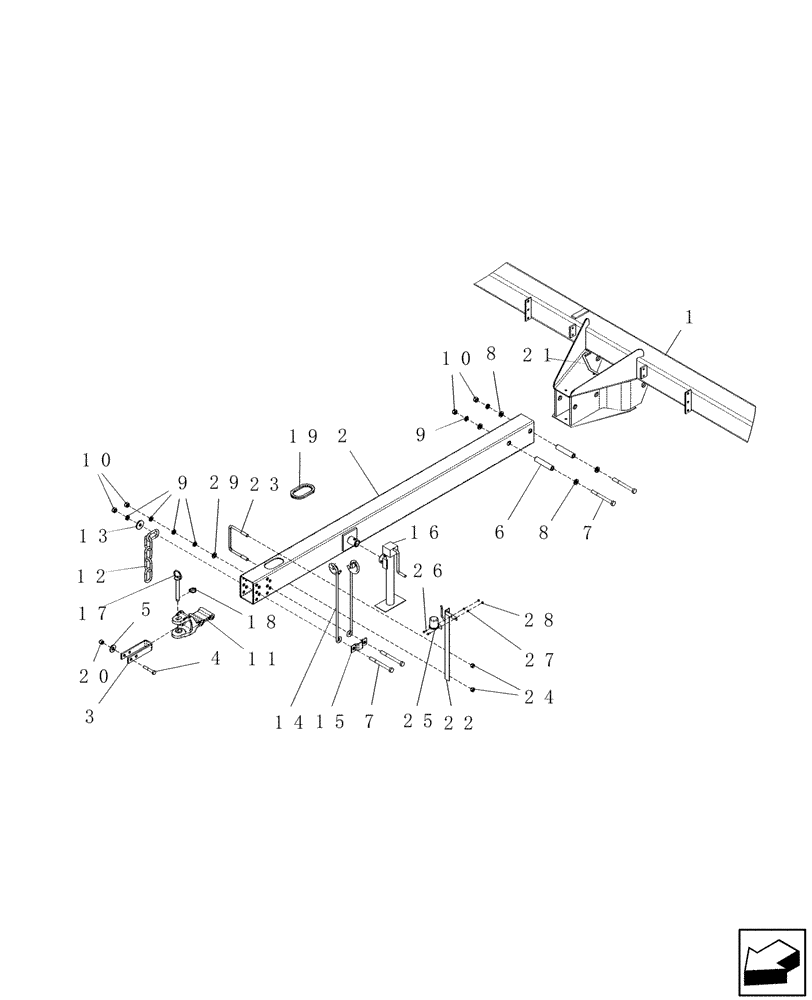

![Схема запчастей Case IH 1200 - (F.10.G[02]) - MAIN FRAME AND HITCH, 6 ROW RIGID TRAILING (BSN CBJ022935) F - Frame Positioning](https://www.partsell.ru/storage/images/caseih/288965.png)
