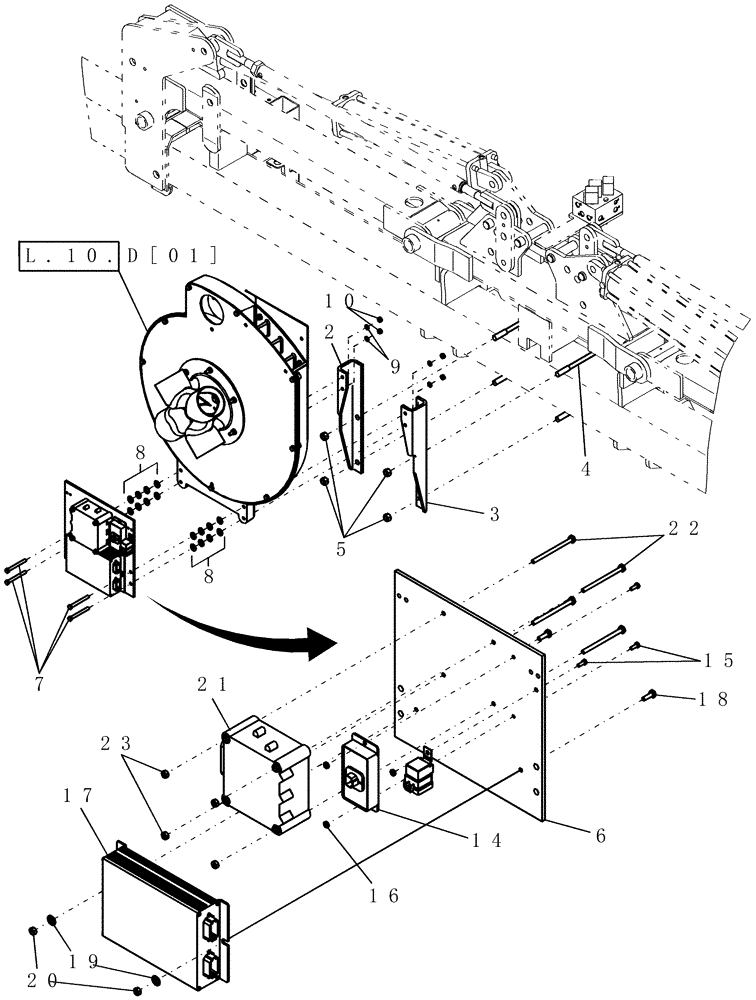

Запчасти Case IH 1200 (L.10.D[09]) - FAN AND ELECTRONIC ASSEMBLY MOUNTING, ALL MOUNTED STACKERS, EXCEPT 12 ROW 30" SPACING AND 16 ROW VR HYDRAULIC DRIVE (BEFORE 10/03) L - Field Processing

2

364055A1

BRACKET

fan mounting LH

1шт.

3

364054A1

BRACKET

fan mounting RH

1шт.

4

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

6

323477A4

BRACKET

electrical mounting

1шт.

7

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

4шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

16шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

10

9628503

NUT,3/8"-16, G5

4шт.

14

284638A2

ELEC CONNECTOR,4 Pin

terminator, ASM monitor

1шт.

15

86624117

SCREW,Hex, #10 - 24 x 1/2"

3шт.

16

87304

NUT,#10-24

3шт.

17

405514A1

CONTROL

module, monitor interface

1шт.

17

405514A1R

REMAN ELECT CONTROL

1200 CASE IH ADVANCED SEED METER PLANTER, module, monitor interface (11/01-7/08)

1шт.

17

405514A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

18

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

19

88538

LOCK WASHER,Ext-Int Tooth, 1/4"

2шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

21

293807A5

MODULE

gateway, bin level, Serial Range: -CBJ0018589

1шт.

22

280492

BOLT,Hex, 1/4" - 20 x 3 1/2", Gr 5

4шт.

23

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.
