(L.10.E[07]) - VACUUM AIR SYSTEM - 16 ROW MOUNTED STACKER

Запчасти Case IH 1200 (L.10.E[07]) - VACUUM AIR SYSTEM - 16 ROW MOUNTED STACKER L - Field Processing

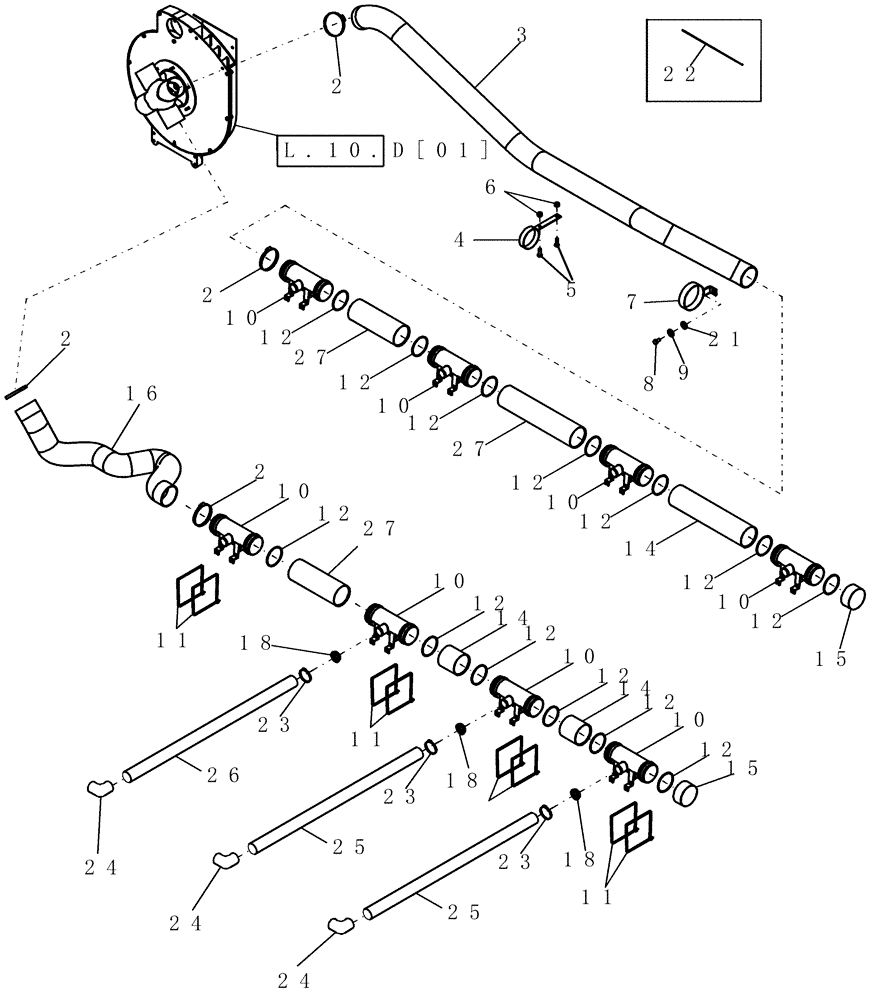

Схема запчастей Case IH 1200 - (L.10.E[07]) - VACUUM AIR SYSTEM - 16 ROW MOUNTED STACKER L - Field Processing
22
4
3
5
10
25
12
10
12
23
12
2
14
18
2
15
12
12
12
11
10
24
10
2
6
23
15
11
25
11
14
12
18
8
18
7
26
27
21
10
24
12
24
12
10
10
14
12
16
27
27
12
12
9
10
2
23
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

9706924

HOSE CLAMP,103.1mm - 127mm

10шт.

3

327659A1

HOSE

flex 4 1/2" id x 3900 mm

2шт.

4

87573437

HOLDER

hose

2шт.

5

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

280431

NUT,1/2"-13, G5

4шт.

7

87573434

HOLDER

vacuum hose

2шт.

8

86622978

BOLT,Hex, 3/8" - 16 x 5/8", Gr 8, Full Thd

2шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

10

300766A1

TEE

vacuum manifold

16шт.

11

112620A1

CABLE TIE

CABLE STRAP 34"

32шт.

12

238-3347

O-RING,4.225" ID x 4.645" OD x 0.21"

24шт.

14

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

vacuum 5" x 556 mm long

4шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

14

362014A1

TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length

vacuum 5" x 6096 mm (20' roll)

1шт.

15

300767A1

CAP

vacuum manifold end

4шт.

16

447890A1

HOSE,114.30 mm ID x 1500.00 mm

2шт.

18

305519A1

PLUG

vacuum manifold restriction

6шт.

21

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

22

238600A3

HOSE,6.35 mm ID x 1730.00 mm

1шт.

23

82012728

COLLAR,50mm - 65mm, Worm Gear

12шт.

24

66000962

ELBOW

90º 50 mm - Brazil vacuum hose

12шт.

25

87501726

HOSE

vacuum 2" x 50' bulk

10шт.

Standard row unit

1шт.

26

87501726

HOSE

vacuum 2" x 50' bulk

2шт.

Extended row unit

1шт.

27

307971A1

TUBE,116.88 mm ID, 125 mm OD, 444 mm Length

vacuum 5" x 444 mm long

2шт.
