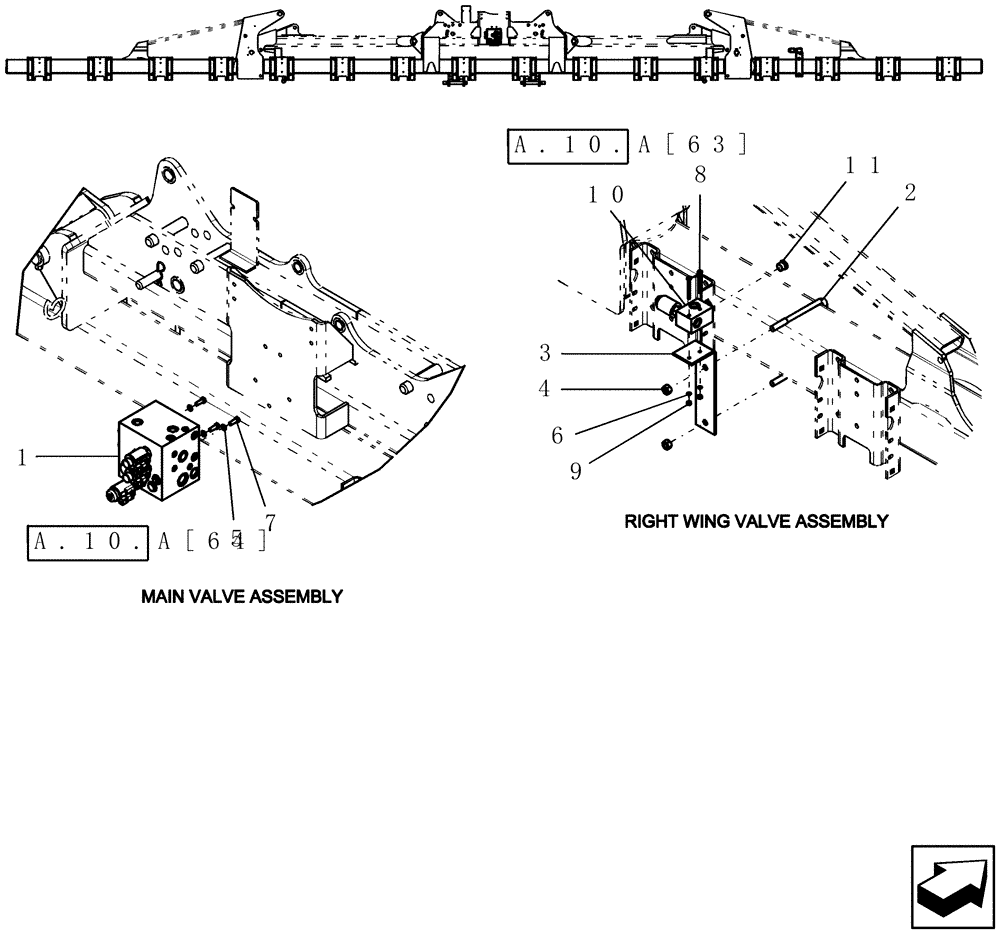

Запчасти Case IH 1200 (A.10.A[22]) - VALVE MOUNTING - 16 ROW MOUNTED STACKER VARIABLE RATE DRIVE A - Distribution Systems

1

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

2

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

1шт.

3

87582352

BRACKET

mount, auxiliary valve

1шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

6

80682

LOCK WASHER,1/4"

2шт.

7

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

8

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

2шт.

9

86517505

NUT,1/4"-20, G5

2шт.

10

226734A4

VALVE

proportional flow control

1шт.

11

9625178

PLUG,9/16" - 18 ORB

1шт.
