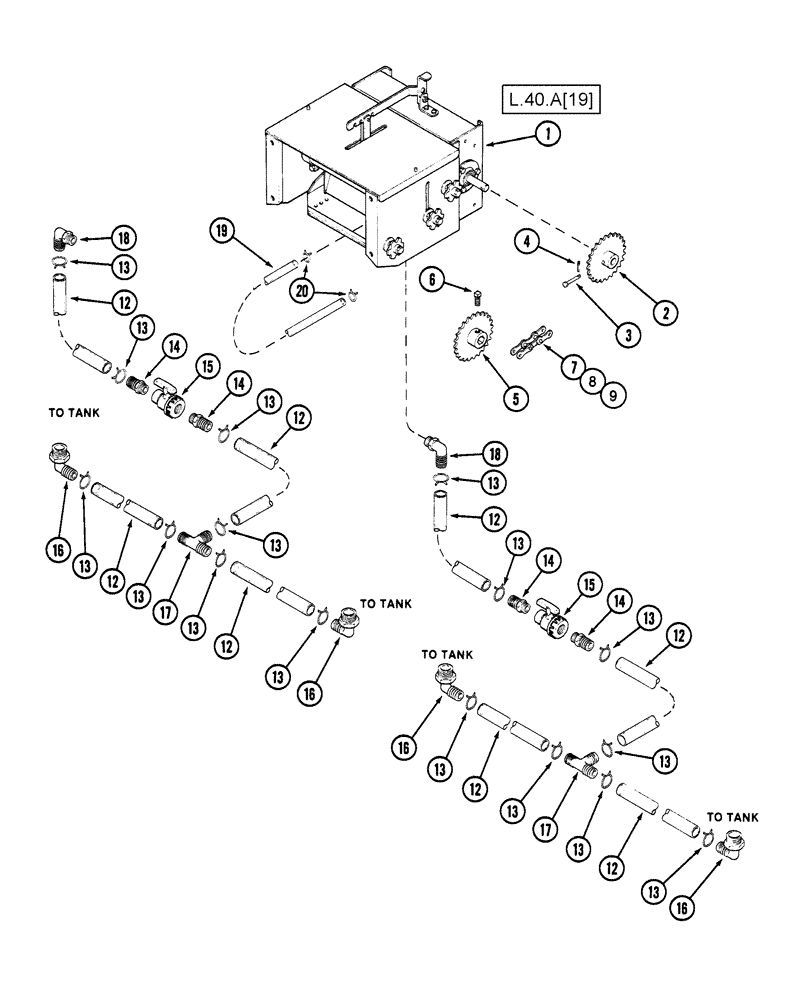

Запчасти Case IH 1200 (L.40.A[16]) - LIQUID FERTILIZER SQUEEZE PUMP SYSTEM AND SECONDARY DRIVE, 8 ROW RIGID TRAILING (BSN CBJ025391) L - Field Processing

1

416825A1

PUMP

8 row liquid fertilizer squeeze

1шт.

2

1250746C1

SPROCKET

24 tooth

1шт.

2

1254149C1

SPROCKET

21 tooth

1шт.

2

1254150C1

SPROCKET

30 tooth

1шт.

3

86624059

HEADED PIN,1/4" x 1 7/8"

2шт.

4

80756

COTTER PIN,1/8" x 3/4"

2шт.

5

1254152C2

SPROCKET

assembly, 30 tooth driver

1шт.

6

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

7

149569C3

CHAIN (AG)

drive, use 99 links of 569088R91 bulk chain, (1) 1277927C91 connecting link and (1) 457114R91 offset link

1шт.

When using the extension bar assembly for the Min-till fertilizer openers use an additional 19 links of 569088R91 chain and one additional 1277927C91 connecting link

1шт.

Use 99 links of 569088R91 bulk chain, (1) 1277927C91 connecting link and (1) 242-178 offset link.

1шт.

7

569088R91

CHAIN (AG)

#2040 - 10' d/p roller

1шт.

8

1277927C91

LINK

connecting

1шт.

9

242-178

LINK,25.4mm Pitch

offset, double pitch, No. 2040

1шт.

12

NSS

NOT SOLD SEPARAT

hose Transparent, 1" id x 168", Cut From 134329C3

1шт.

12

134329C3

HOSE

1" x 50' epdm

1шт.

13

86624007

HOSE CLAMP,#20, 1 1/4", Spring

1шт.

14

134270C2

FITTING

poly straight 3/4" mp x 1" hb

4шт.

15

1345067C1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

poly 3/4" fpt x 3/4" fpt ball valve

2шт.

16

1261310C2

ELBOW

poly 90º 1 1/4" mp x 1" hb

4шт.

17

1261309C1

TEE

1" hose barb

2шт.

18

134271C2

ELBOW,ELBOW, 90

poly 90º 3/4" mpt x 1" hb

2шт.

19

NSS

NOT SOLD SEPARAT

hose Transparent, 1/2" id x 900", Cut From 134331C2

1шт.

19

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

1шт.

20

134278C1

CLAMP

hose ss SAE #12 for 5/8"

1шт.
