(A.10.A[38]) - MARKER HYDRAULICS MOUNTED STACKER ASN CBJ036001

Запчасти Case IH 1200 (A.10.A[38]) - MARKER HYDRAULICS MOUNTED STACKER ASN CBJ036001 A - Distribution Systems

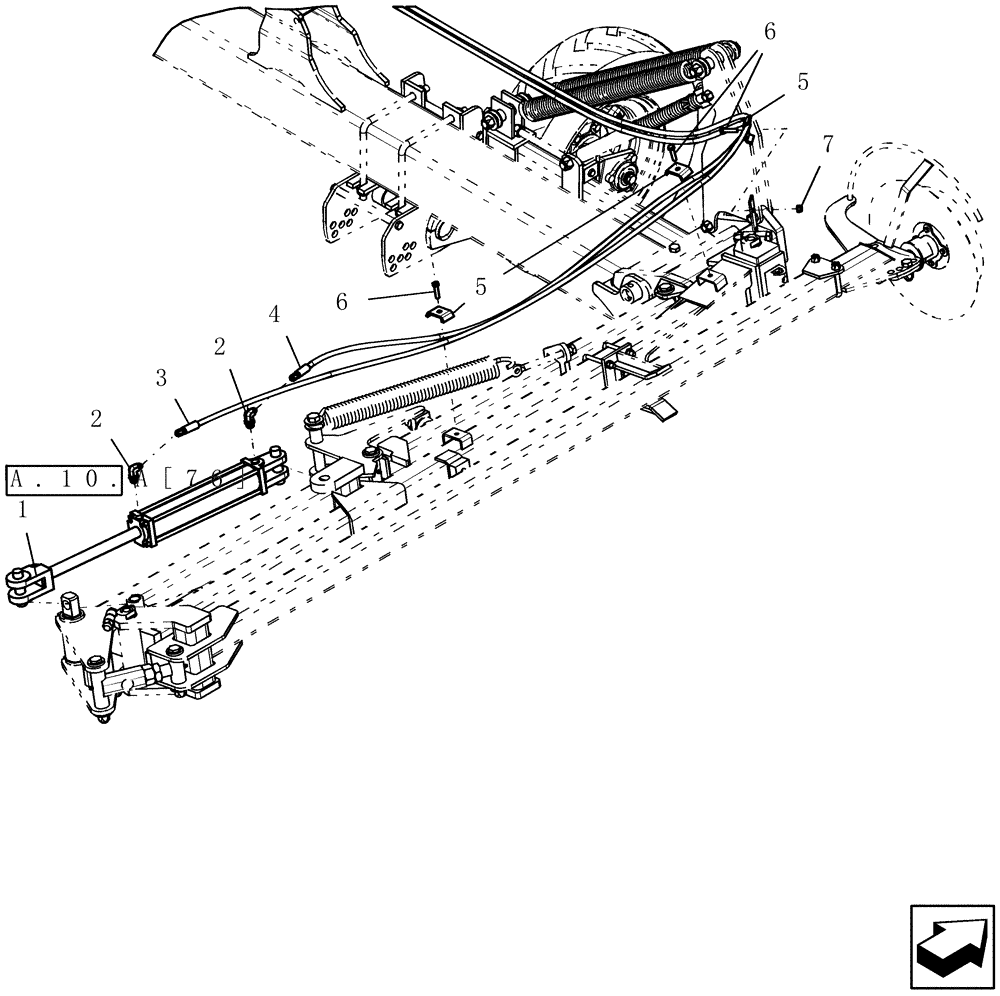

Схема запчастей Case IH 1200 - (A.10.A[38]) - MARKER HYDRAULICS MOUNTED STACKER ASN CBJ036001 A - Distribution Systems
7
2
5
1
3
6
6
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25325120

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 304.8mm Stroke

2 1/2" x 12" 3000 psi

1шт.

2

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

3

1971547C1

HYDRAULIC HOSE

1/4" x 330" fl

1шт.

4

1971547C1

HYDRAULIC HOSE

1/4" x 330" fl

1шт.

5

427779A1

CLAMP

2 hose

3шт.

6

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

7

88902

NUT,3/8"-16

1шт.
