(A.10.A[42]) - HYDRAULIC CIRCUIT - GULL WING ATTACHMENT, WITHOUT ASSIST WHEELS, 12 ROW NARROW MOUNTED STACKER

Запчасти Case IH 1200 (A.10.A[42]) - HYDRAULIC CIRCUIT - GULL WING ATTACHMENT, WITHOUT ASSIST WHEELS, 12 ROW NARROW MOUNTED STACKER A - Distribution Systems

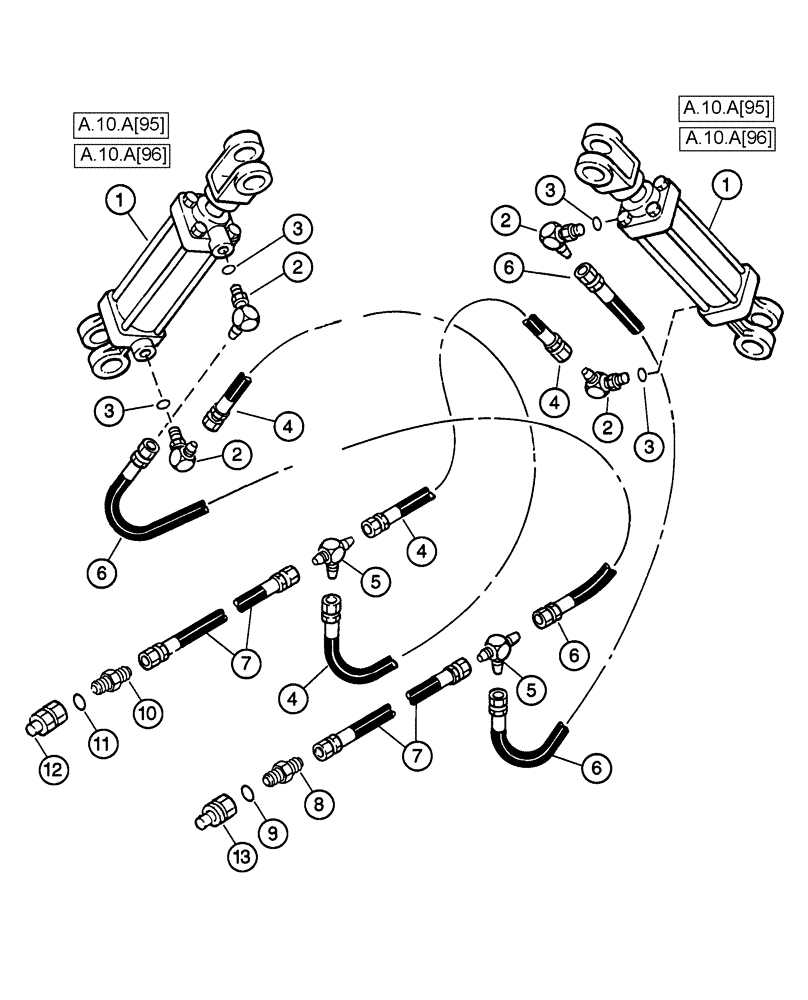

Схема запчастей Case IH 1200 - (A.10.A[42]) - HYDRAULIC CIRCUIT - GULL WING ATTACHMENT, WITHOUT ASSIST WHEELS, 12 ROW NARROW MOUNTED STACKER A - Distribution Systems
4
4
2
4
3
5
2
8
a.10.a[96]
a.10.a[96]
a.10.a[95]
a.10.a[95]
11
3
1
6
7
2
5
3
6
6
13
3
4
10
6
9
1
12
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

357157A1

HYDRAULIC CYLINDER,Double Acting, 203.2mm Stroke

64 mm (2 1/2") id x 203 mm (8") stroke

2шт.

2

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

4шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

4

90875C1

HYDRAULIC HOSE

1/2" x 29" (735 mm) fl

2шт.

5

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

6

1960386C1

HYDRAULIC HOSE

1/2" x 35" fl

2шт.

7

195869C2

HYDRAULIC HOSE

1/2" x 75" fl

2шт.

8

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

335733A2

QUICK MALE COUPLING

9/16-18 orb

1шт.

13

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

1шт.
