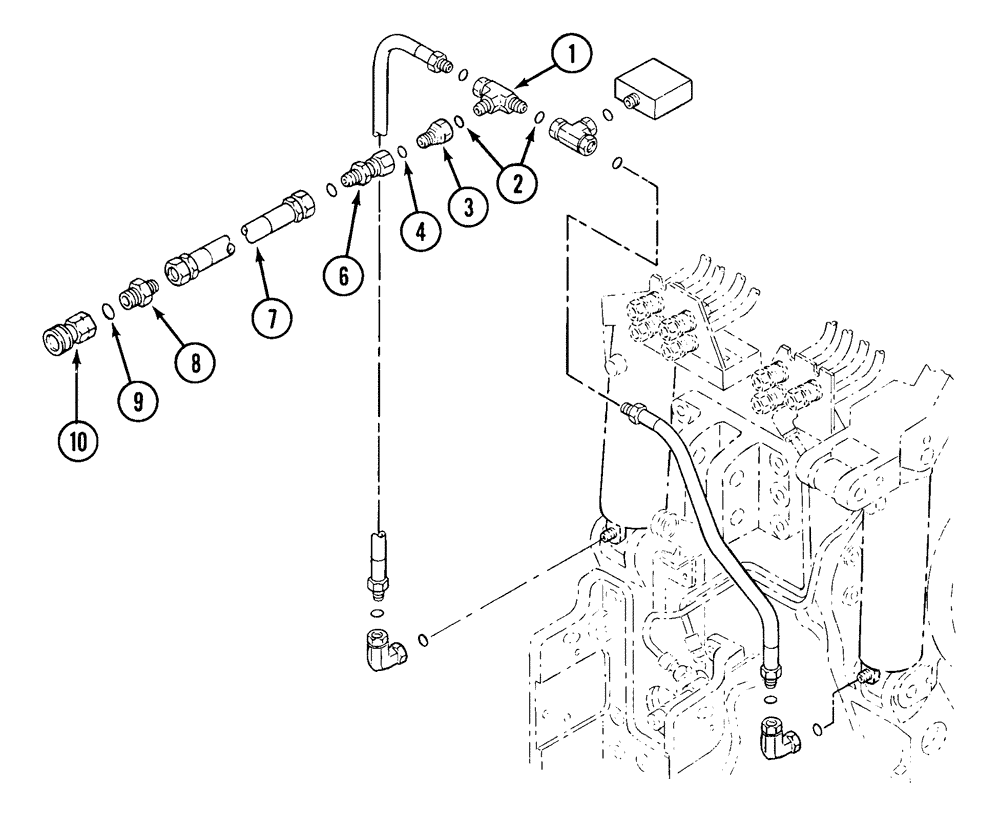

Запчасти Case IH 1200 (A.10.A[45]) - ASSIST WHEEL HYDRAULIC ATTACHMENT KIT, MX150 THROUGH MX170 MAXXUM TRACTORS A - Distribution Systems

0

367009A1

KIT

MX135 PH2 hydraulic assist wheel

1шт.

1

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

1шт.

2

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

3

201-146

REDUCER,13/16"-16 Male x 1"-14 Fem, ORFS

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

86624028

TUBE NUT,1"-14 ORFS

1шт.

Not Shown

1шт.

6

335732A1

ADAPTER,13/16"-16 ORFS x 3/4"-16 37 Degree

1шт.

7

1304251C2

HYDRAULIC HOSE

1/2" x 41" fl

1шт.

8

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

335734A2

COUPLING

hydraulic female quick

1шт.
