(A.10.A[56]) - ROW MARKER VALVE ASSEMBLY 149988C92, RIGID MOUNTED AND RIGID TRAILING PLANTERS (BSN CBJ025391)

Запчасти Case IH 1200 (A.10.A[56]) - ROW MARKER VALVE ASSEMBLY 149988C92, RIGID MOUNTED AND RIGID TRAILING PLANTERS (BSN CBJ025391) A - Distribution Systems

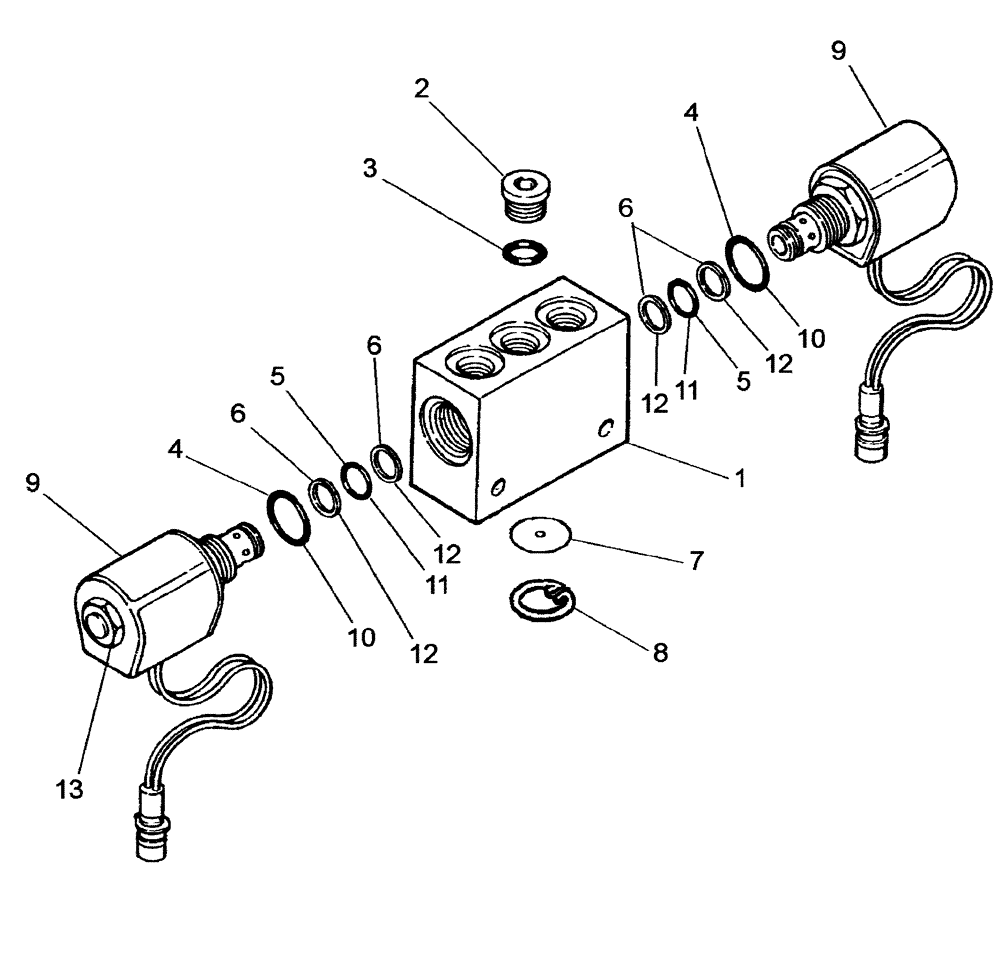

Схема запчастей Case IH 1200 - (A.10.A[56]) - ROW MARKER VALVE ASSEMBLY 149988C92, RIGID MOUNTED AND RIGID TRAILING PLANTERS (BSN CBJ025391) A - Distribution Systems
12
9
11
12
12
9
8
10
4
6
10
12
4
2
6
1
6
5
13
11
3
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

149988C92

VALVE

assembly

1шт.

1

145317C2

VALVE BODY

assembly

1шт.

2

NSS

NOT SOLD SEPARAT

plug, Includes 0-Ring, 9/16-18 inch, Boss

1шт.

3 - 9

145316C1

REPAIR KIT

seal, valve assembly

1шт.

3

NSS

NOT SOLD SEPARAT

o-ring, Plug

1шт.

4

NSS

NOT SOLD SEPARAT

o-ring, Solenoid Valve

2шт.

5

NSS

NOT SOLD SEPARAT

o-ring, Solenoid Valve

2шт.

6

NSS

NOT SOLD SEPARAT

washer Backup

4шт.

7

126158A1

ORIFICE

disk .110" & .042"

1шт.

8

100-2175

SNAP RING,0.75", Int, #75

1шт.

9

149989C91

VALVE

solenoid

2шт.

10 - 13

126054A1

SEAL PACKAGE

flow control

1шт.

10

NSS

NOT SOLD SEPARAT

o-ring, Solenoid Valve

1шт.

11

NSS

NOT SOLD SEPARAT

o-ring, Solenoid Valve

1шт.

12

NSS

NOT SOLD SEPARAT

washer Backup

2шт.

13

73113425

NUT

1/2"-20, Thin

2шт.
