(A.10.A[61]) - VALVE ASSEMBLY 302403A3 MOUNTED STACKER (ASN CBJ025392)

Запчасти Case IH 1200 (A.10.A[61]) - VALVE ASSEMBLY 302403A3 MOUNTED STACKER (ASN CBJ025392) A - Distribution Systems

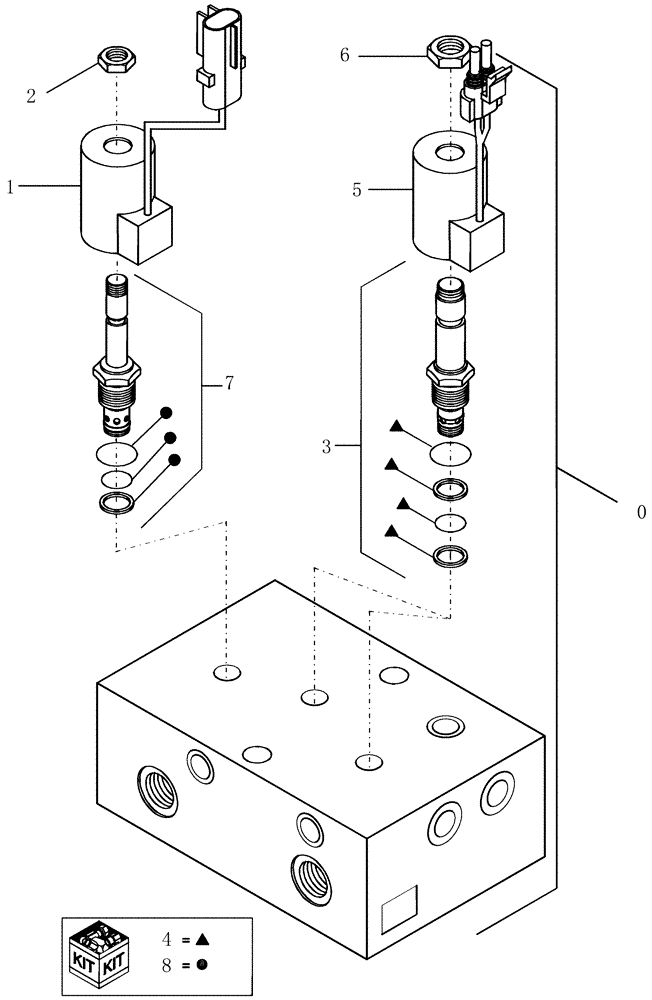

Схема запчастей Case IH 1200 - (A.10.A[61]) - VALVE ASSEMBLY 302403A3 MOUNTED STACKER (ASN CBJ025392) A - Distribution Systems
8
4
7
4
8
4
6
4
5
1
8
0
2
4
8
3
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

302403A3

VALVE

assembly, stacker bar planter

1шт.

1

1340843C1

SOLENOID,12V

solenoid with Packard

1шт.

2

73113425

NUT

1/2"-20, Thin

1шт.

3

330535A1

VALVE

bi-directional cartridge

2шт.

4

126054A1

SEAL PACKAGE

flow control

2шт.

5

330536A1

SOLENOID

coil, bi-directional

2шт.

6

87463363

NUT

5/8"-24

2шт.

7

93210C1

VALVE

cartridge

1шт.

8

126054A1

SEAL PACKAGE

flow control

1шт.

Выбрано товаров: 0
