(A.10.A[63]) - VALVE, PROPORTIONAL FLOW CONTROL 226734A4 - 16 ROW MOUNTED STACKER VARIABLE RATE DRIVE

Запчасти Case IH 1200 (A.10.A[63]) - VALVE, PROPORTIONAL FLOW CONTROL 226734A4 - 16 ROW MOUNTED STACKER VARIABLE RATE DRIVE A - Distribution Systems

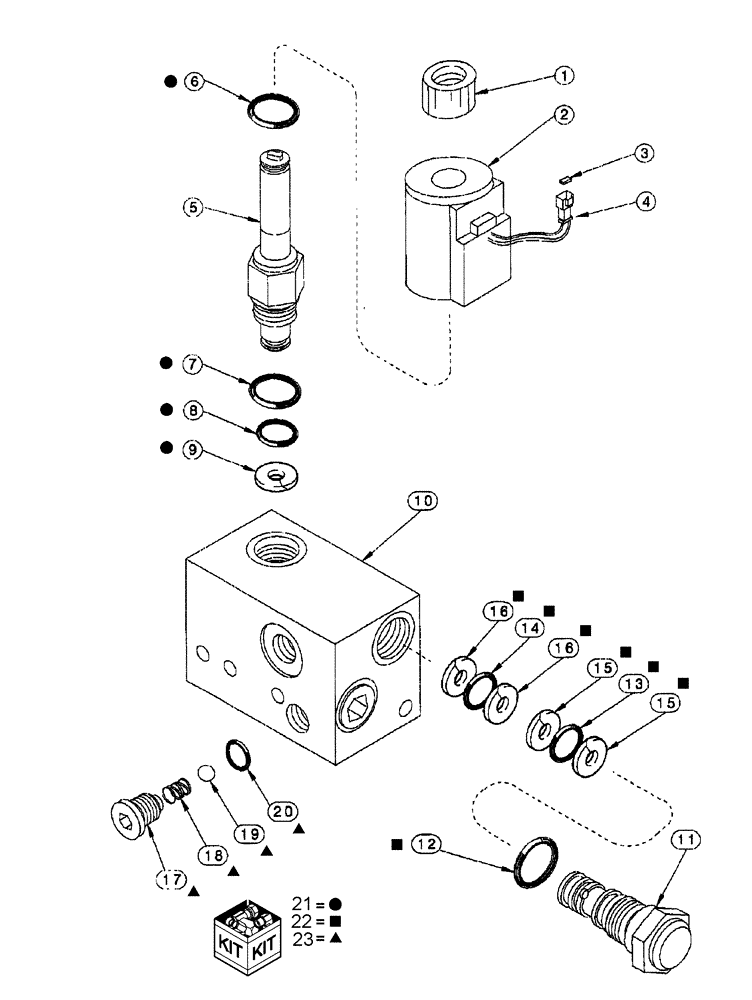

Схема запчастей Case IH 1200 - (A.10.A[63]) - VALVE, PROPORTIONAL FLOW CONTROL 226734A4 - 16 ROW MOUNTED STACKER VARIABLE RATE DRIVE A - Distribution Systems
21
21
7
23
15
23
23
21
17
10
19
16
21
21
23
13
6
3
16
21
21
22
15
18
9
21
20
21
21
21
5
2
4
14
1
23
11
8
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

226734A4

VALVE

proportional flow control

1шт.

Includes 1-20

1шт.

1

188106A1

NUT

retaining, Serial Range: coil-stem

1шт.

2

188105A1

SOLENOID

coil

1шт.

3

225318C1

ELEC CONNECTOR,2 Pin

W2P

1шт.

4

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

1шт.

5

254969A2

HYDRAULIC VALVE

flow control cartridge

1шт.

6

NSS

NOT SOLD SEPARAT

o-ring

1шт.

7

NSS

NOT SOLD SEPARAT

o-ring

1шт.

8

NSS

NOT SOLD SEPARAT

o-ring

1шт.

9

NSS

NOT SOLD SEPARAT

washer backup

1шт.

10

278201A1

VALVE BODY

manifold

1шт.

11

278200A1

VALVE

assembly, compensator

1шт.

12

NSS

NOT SOLD SEPARAT

o-ring

1шт.

13

NSS

NOT SOLD SEPARAT

o-ring

1шт.

14

NSS

NOT SOLD SEPARAT

o-ring

1шт.

15

NSS

NOT SOLD SEPARAT

washer backup

2шт.

16

NSS

NOT SOLD SEPARAT

washer backup

2шт.

17

NSS

NOT SOLD SEPARAT

plug

1шт.

18

NSS

NOT SOLD SEPARAT

spring

1шт.

19

NSS

NOT SOLD SEPARAT

ball steel

1шт.

20

NSS

NOT SOLD SEPARAT

guide spring

1шт.

21

S301087

SEAL KIT

differentional pressure compensator

1шт.

Includes 6-9, 12-16

1шт.

22

NS

NOT SERVICED

Not Used

1шт.

23

1341811C1

SPRING-CHECK

REPAIR KIT sense check

1шт.

Includes 17-20

1шт.
