(A.10.A[67]) - HYDRAULIC CYLINDER - 1345980C1, ROW MARKER, RIGID MOUNTED MACHINES & 8 ROW RIGID TRAILING

Запчасти Case IH 1200 (A.10.A[67]) - HYDRAULIC CYLINDER - 1345980C1, ROW MARKER, RIGID MOUNTED MACHINES & 8 ROW RIGID TRAILING A - Distribution Systems

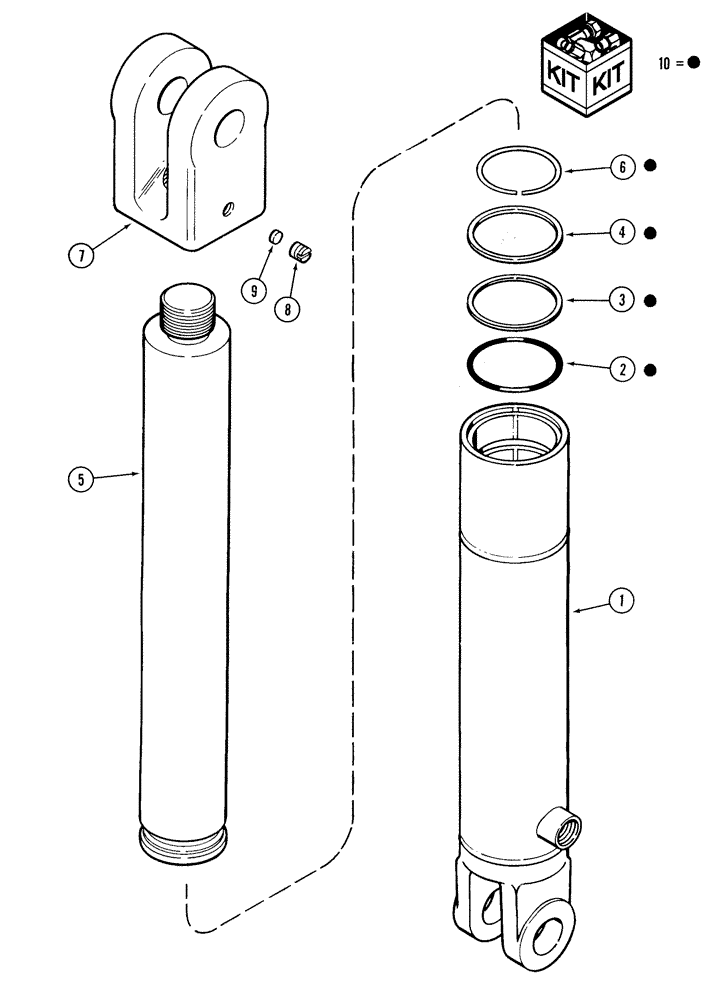

Схема запчастей Case IH 1200 - (A.10.A[67]) - HYDRAULIC CYLINDER - 1345980C1, ROW MARKER, RIGID MOUNTED MACHINES & 8 ROW RIGID TRAILING A - Distribution Systems
8
10
9
4
3
1
6
5
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

1345980C1

HYDRAULIC CYLINDER

2" x 8" single acting, Years: -06-JUL-01

1шт.

1

145621C1

HYD TUBE

cylinder

1шт.

2

86632689

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2" x 2 3/8" class 6

1шт.

Included in repair kit 145682C1

1шт.

3

59741C1

WIPER SEAL

seal, rod

1шт.

Included in repair kit 145682C1

1шт.

4

387399R2

RING

back-up

1шт.

Included in repair kit 145682C1

1шт.

5

1343689C1

PISTON ROD

1шт.

6

145628C1

RING

rod retainer

1шт.

Included in repair kit 145682C1

1шт.

7

145233C1

CLEVIS,1/4" - 12

end, rod

1шт.

8

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

10

145682C1

SEALING RING

cylinder

1шт.
