(A.10.A[68]) - HYDRAULIC CYLINDER - 414705A1, ROW MARKER, RIGID MOUNTED MACHINES & 8 ROW RIGID TRAILING

Запчасти Case IH 1200 (A.10.A[68]) - HYDRAULIC CYLINDER - 414705A1, ROW MARKER, RIGID MOUNTED MACHINES & 8 ROW RIGID TRAILING A - Distribution Systems

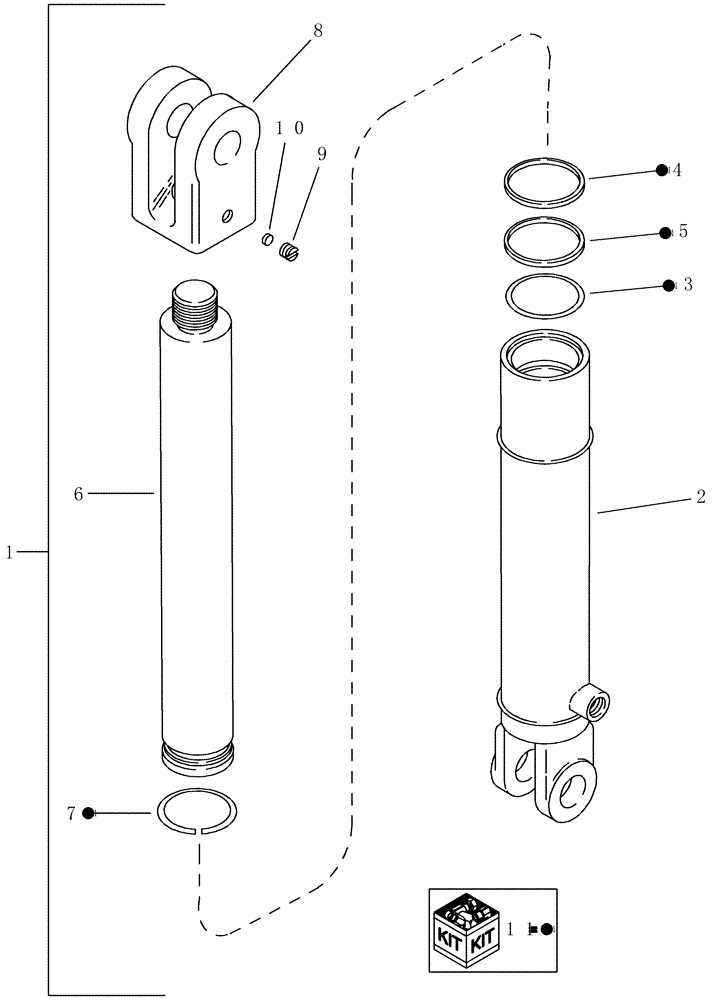

Схема запчастей Case IH 1200 - (A.10.A[68]) - HYDRAULIC CYLINDER - 414705A1, ROW MARKER, RIGID MOUNTED MACHINES & 8 ROW RIGID TRAILING A - Distribution Systems
3
5
10
8
11
2
9
4
7
11
1
11
11
6
11
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

414705A1

HYDRAULIC CYLINDER

2" x 8" 3000 psi without pins, Years: 07-JUL-01-10-MAR-03

1шт.

2

145621C1

HYD TUBE

cylinder

1шт.

3

86632689

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2" x 2 3/8" class 6

1шт.

Included in repair kit 145682C1

1шт.

4

59741C1

WIPER SEAL

seal, rod

1шт.

Included in repair kit 145682C1

1шт.

5

387399R2

RING

back-up

1шт.

Included in repair kit 145682C1

1шт.

6

1343689C1

PISTON ROD

1шт.

7

145628C1

RING

rod retainer

1шт.

Included in repair kit 145682C1

1шт.

8

145233C1

CLEVIS,1/4" - 12

end, rod

1шт.

9

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

11

145682C1

SEALING RING

cylinder

1шт.
