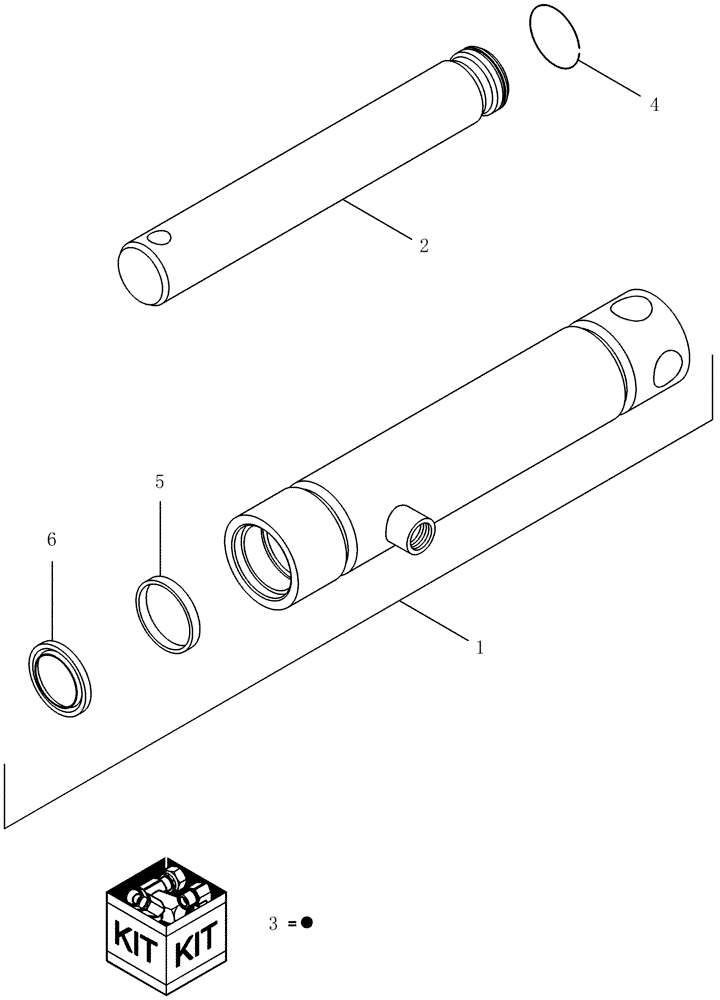

Запчасти Case IH 1200PT (A.10.A[04]) - HYDRAULIC CYLINDER - 429834A1 A - Distribution Systems

1

429834A1

HYDRAULIC CYLINDER

1" x 4", Serial Range: -PNL001100

1шт.

2

1282430C2

ROD

hyd cylinder piston

1шт.

3

1282437C1

SEAL KIT

KIT, HYD CYLINDER (Includes ref 4, 5, 6 and 7)

1шт.

4

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

Part of Hydraulic Cylinder Seal Kit P/N 1282437C1

1шт.

5

532854R1

SEAL,25.17mm ID x 31.52mm OD x 1.32mm Thk

piston rod backup

1шт.

Part of Hydraulic Cylinder Seal Kit P/N 1282437C1

1шт.

6

532773R1

WIPER SEAL

rod

1шт.

Part of Hydraulic Cylinder Seal Kit P/N 1282437C1

1шт.

7

145190C1

SNAP RING

1шт.

Not Shown

1шт.
