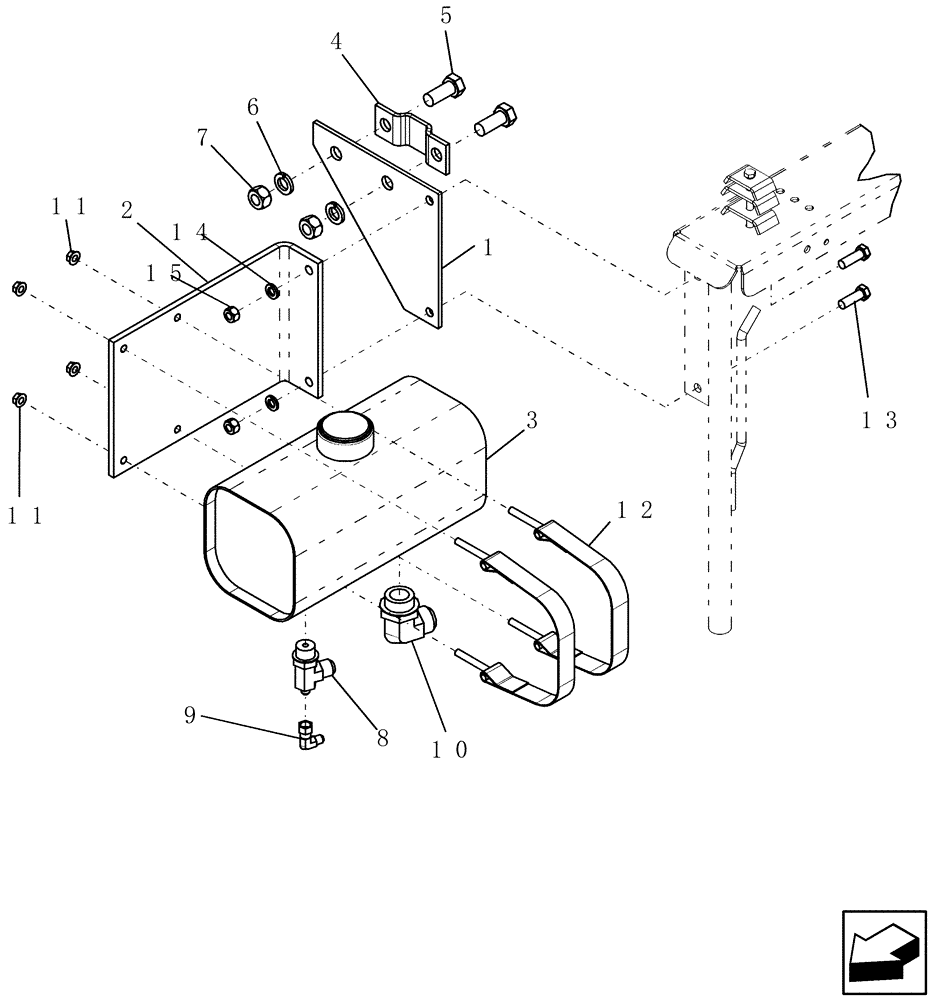

Запчасти Case IH 1200PT (L.10.D[09]) - BULK FILL - PTO 12 ROW & 16 ROW - RESERVOIR DETAIL (BSN CBJ022057) L - Field Processing

1

86991597

MOUNTING PLATE

PTO

1шт.

2

441473A1

BRACKET

reservoir

1шт.

3

115869A1

RESERVOIR, HYDRAULIC

3 gallon

1шт.

4

137098C1

SUPPORT

bracket, pump mounting

1шт.

5

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

6

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

7

280954

NUT,3/4"-10, G5

2шт.

8

87019668

TEE,9/16"-18, 37 Degree x 1 1/16"-12, O-Ring Run

1шт.

9

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

10

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

2шт.

11

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

12

116093A1

STRAP

oil reservoir tank

2шт.

13

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

15

280431

NUT,1/2"-13, G5

2шт.
