(L.10.E[09]) - VACUUM SENSORS 12/23 ROW, 16/31 ROW & 24 ROW

Запчасти Case IH 1200PT (L.10.E[09]) - VACUUM SENSORS 12/23 ROW, 16/31 ROW & 24 ROW L - Field Processing

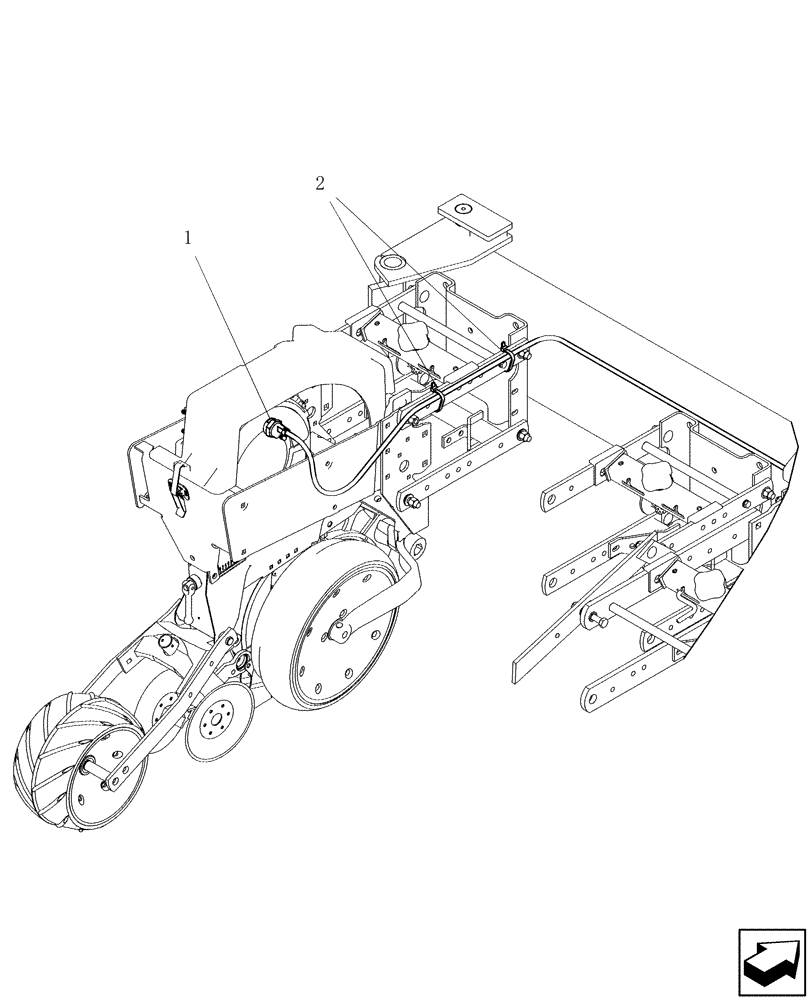

Схема запчастей Case IH 1200PT - (L.10.E[09]) - VACUUM SENSORS 12/23 ROW, 16/31 ROW & 24 ROW L - Field Processing
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

404625A1

SENSOR

vacuum, Years: -01-MAY-07

2шт.

1

87539925

SENSOR

vacuum assembly, Start Year: 01-JUN-07

2шт.

1

87505308

CAP

vacuum, Years: -01-MAY-07

1шт.

1

87613344

CAP

vacuum, Start Year: 01-JUN-07

1шт.

1

87505318

CLAMP

hose

1шт.

2

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

4шт.
