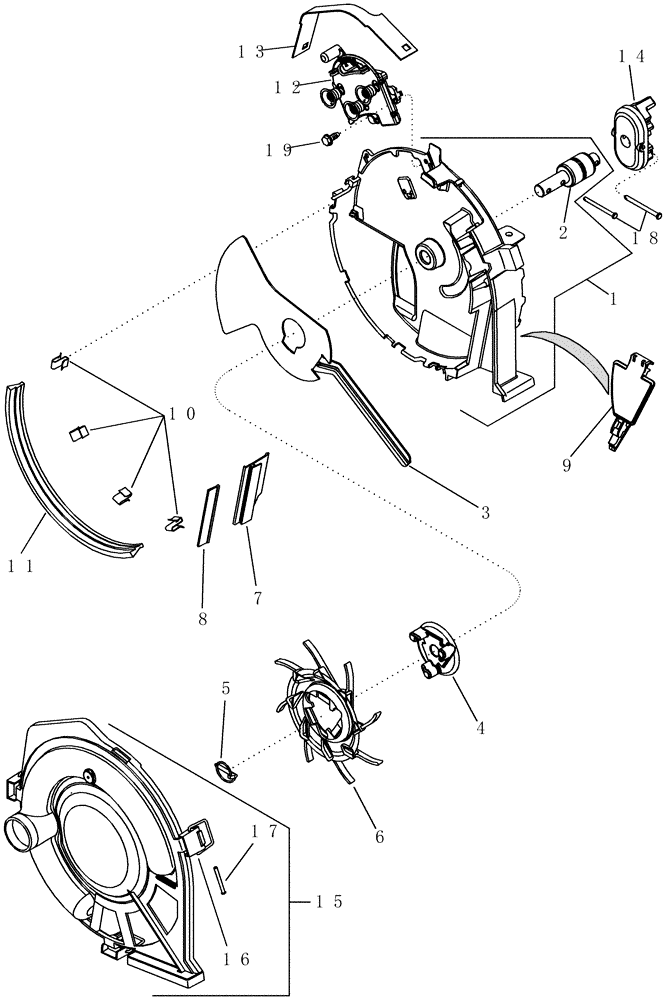

Запчасти Case IH 1200PT (L.10.F[10]) - SEED METER ASSEMBLY (BSN CBJ0001596) L - Field Processing

1

301546A2

BEARING ASSY

1шт.

2

301552A1

BEARING ASSY

seed meter

1шт.

3

294837A1

BAFFLE

seed shut off

1шт.

4

326923A1

ROTOR

disc

1шт.

5

302676A1

LINCH PIN

4.76 mm x 31.75 mm long

1шт.

6

326924A2

AGITATOR

seed

1шт.

7

294924A1

CLIP

straight brush

1шт.

8

296783A1

BRUSH

straight

1шт.

9

432340A1

DOOR

assembly includes seed latch

1шт.

10

296777A1

CLIP

annulus brush

4шт.

11

296776A1

BRUSH

annulus

1шт.

12

413842A1

HOUSING

singulator

1шт.

12

86994218

REPAIR KIT

singulator replacement

1шт.

13

300089A1

SCREEN

seed meter

1шт.

14

308400A4

DRIVE,Assembly, Meter Coupler

assembly, meter

1шт.

15

302238A1

COVER

latch assembly

1шт.

Note: When replacing the meter cover that has the vacuum sensor / fitting attached to it, refer to the service manual for the drilled and tapped hole size required.

1шт.

16

256370A1

LATCH

and bail assembly

3шт.

17

256373A1

PIN,2.31mm OD x 31.11mm L

latch

3шт.

18

308024A2

CLEVIS PIN

cotterless self lock

2шт.

19

86551278

SELF-TAP SCREW,HWH, #10 - 16 x 1/2"

2шт.

100

84156378

ADJUSTING PLATE

seed meter

1шт.
