(L.50.F[03]) - COULTER VALVE ASSEMBLY, WITH RELIEF (BSN CBJ0001892)

Запчасти Case IH 1200PT (L.50.F[03]) - COULTER VALVE ASSEMBLY, WITH RELIEF (BSN CBJ0001892) L - Field Processing

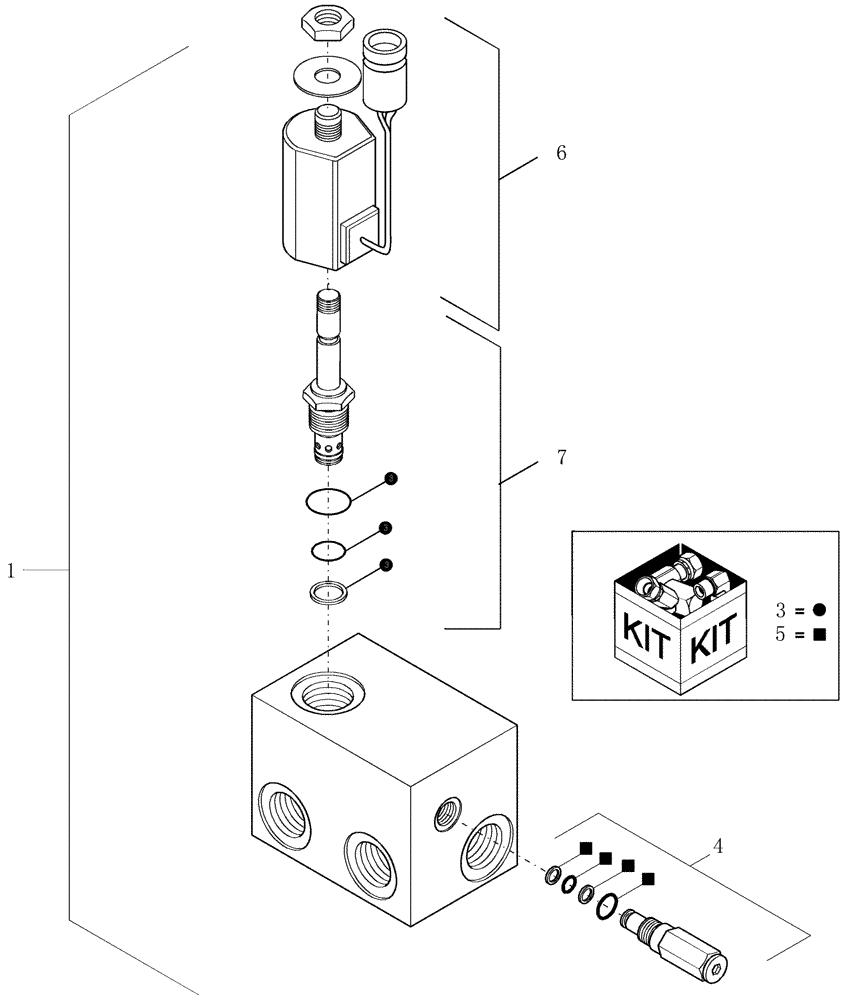

Схема запчастей Case IH 1200PT - (L.50.F[03]) - COULTER VALVE ASSEMBLY, WITH RELIEF (BSN CBJ0001892) L - Field Processing
5
3
3
3
5
5
5
4
5
7
5
3
1
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

433490A2

VALVE

assembly with relief, Serial Range: -CBJ0001892

1шт.

3

86508168

SEAL KIT

Relief Valve

1шт.

4

440589A2

VALVE PRESSURE RELIE

assembly

1шт.

5

126054A1

SEAL PACKAGE

flow control

1шт.

6

87436628

SOLENOID

coil, with cannon connector

1шт.

7

87436627

VALVE

assembly 2 way cartridge

1шт.
