(L.50.F[04]) - COULTER VALVE ASSEMBLY, WITH RELIEF (BTW CBJ0001893 AND CBJ025653)

Запчасти Case IH 1200PT (L.50.F[04]) - COULTER VALVE ASSEMBLY, WITH RELIEF (BTW CBJ0001893 AND CBJ025653) L - Field Processing

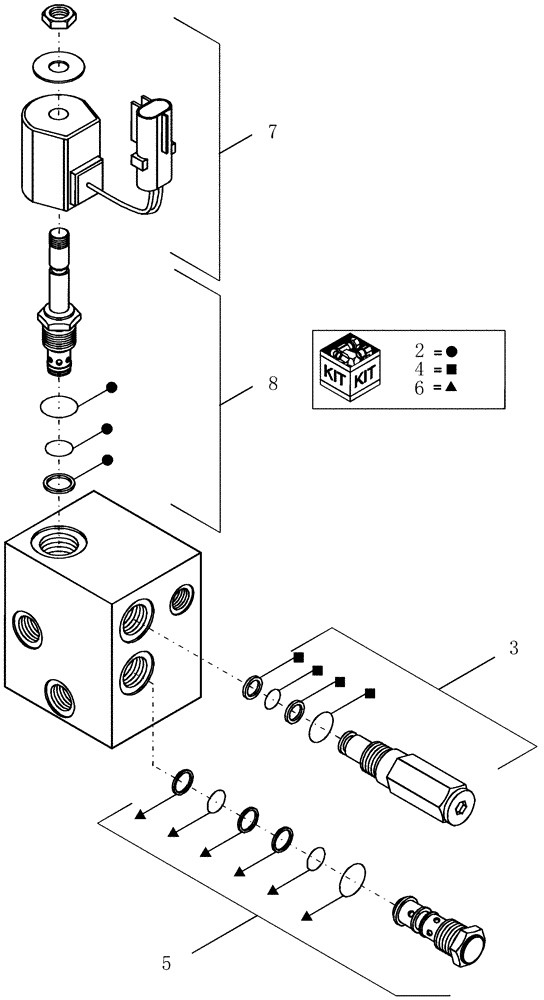

Схема запчастей Case IH 1200PT - (L.50.F[04]) - COULTER VALVE ASSEMBLY, WITH RELIEF (BTW CBJ0001893 AND CBJ025653) L - Field Processing
3
4
6
5
6
4
2
7
6
6
2
6
4
6
2
2
4
4
8
6
4
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87445702

VALVE

coulter

1шт.

24 row planter

1шт.

0

431344A1

VALVE

assembly with relief and PO check

1шт.

2

86508168

SEAL KIT

Relief Valve

1шт.

3

440589A2

VALVE PRESSURE RELIE

assembly

1шт.

3

87445703

VALVE PRESSURE RELIE

1шт.

24 row planter

1шт.

4

126054A1

SEAL PACKAGE

flow control

1шт.

5

190712A1

VALVE

single p.o. cartridge

1шт.

6

1260872C91

SEAL KIT

1шт.

7

87436628

SOLENOID

coil, with cannon connector

1шт.

8

87436627

VALVE

assembly 2 way cartridge

1шт.
