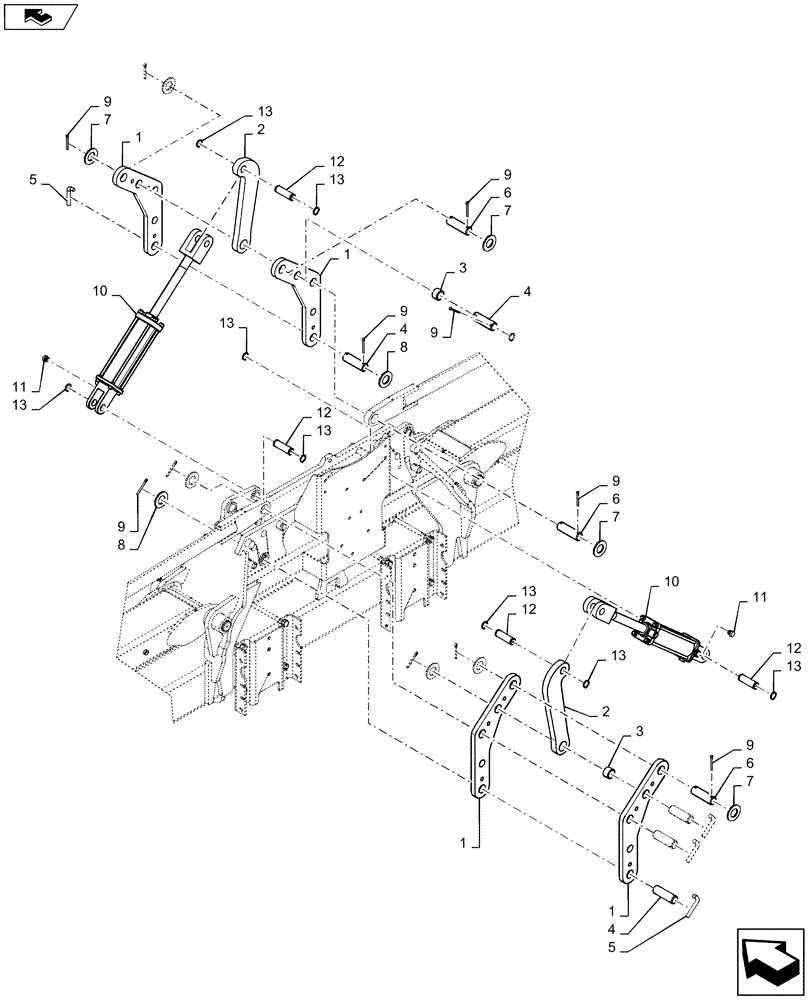

Запчасти Case IH 1235 (39.902.AB[06]) - GULL WINGS FOR 12 ROW 30" (39) - FRAMES AND BALLASTING

1

87688775

PIVOT

Gull Wing Rotational Painted

4шт.

2

87630541

PIVOT

Gull Wing Float Painted

2шт.

3

6636

BUSHING

1.5 X 1.25 X 1"

2шт.

4

87565223

PIN

Gull Wing

6шт.

5

408033A1

PIN

J Lock

6шт.

6

87630551

31.7 X 72"

2шт.

7

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

4шт.

8

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1.250 X 1.875 X .090"

6шт.

9

88182

COTTER PIN,1/4" OD x 2" L

10шт.

10

84479704

HYDRAULIC CYLINDER,28.57mm Rod, 203.2mm Stroke

2.5"

2шт.

11

9479

PLUG

Breather

2шт.

12

84361344

PIN

25.4 X 73.15"

4шт.

13

87019495

SNAP RING,#98, Ext

8шт.
