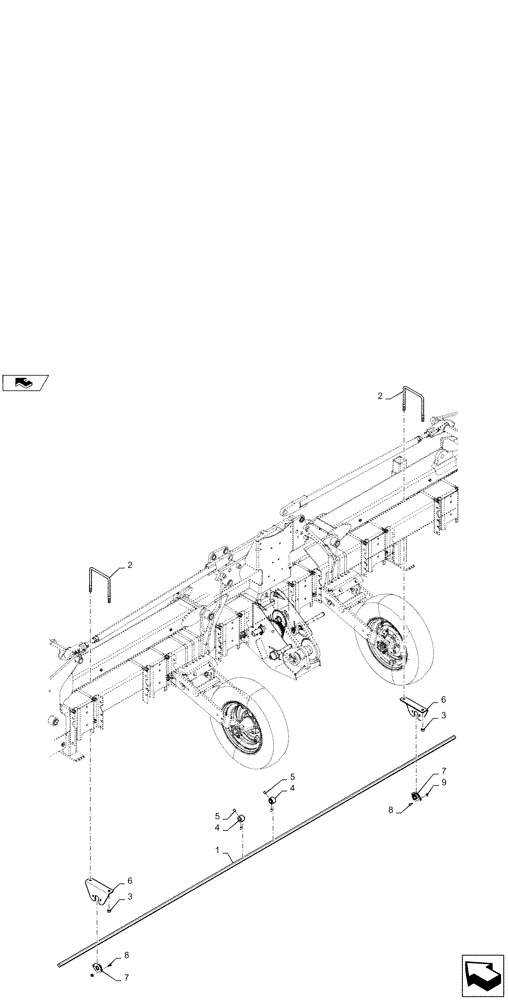

Запчасти Case IH 1235 (61.901.AF[12]) - MECHANICAL DRIVE INPUT SHAFT FOR 12 ROW 30" (61) - METERING SYSTEM

1

84145883

SHAFT

Hex 22 mm X 4140 mm

1шт.

2

1250813C1

U-BOLT

5/8-11 7 X 7

2шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

4

87461085

SPROCKET

Collar Locking

2шт.

5

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

4шт.

6

47522681

SUPPORT

Hex Shaft Bearing Painted

1шт.

7

134158C92

BALL BEARING,22.5mm ID

1шт.

8

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

9

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.
