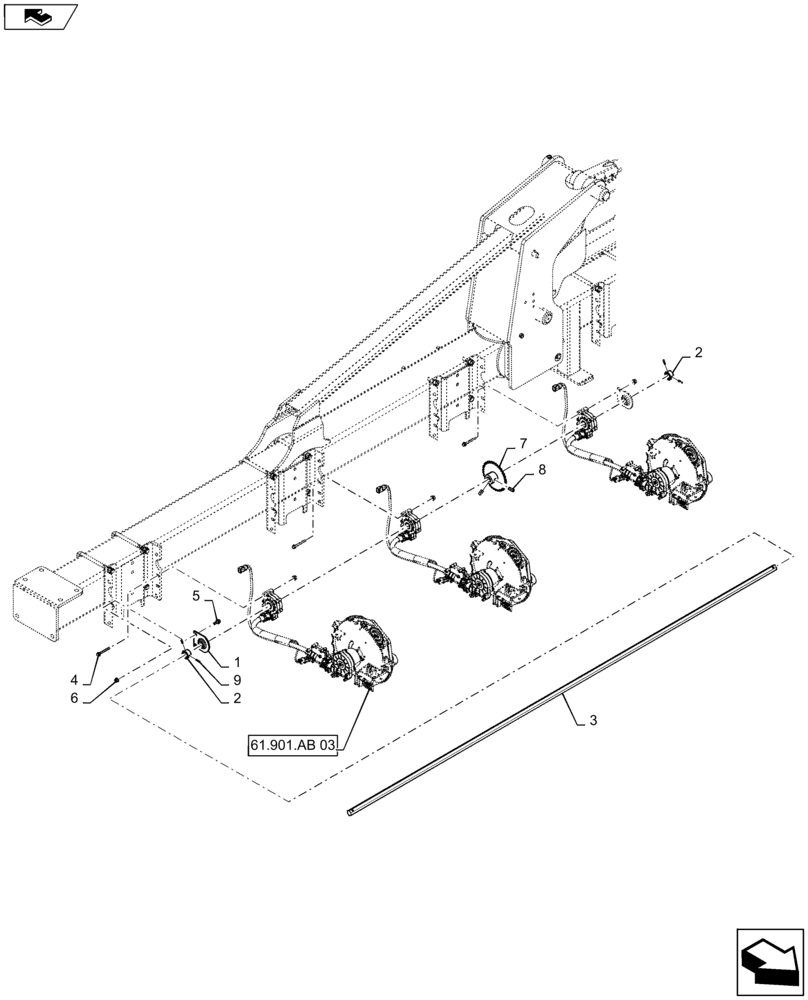

Запчасти Case IH 1235 (61.901.AF[08]) - METER DRIVE SHAFT WITH CABLE FOR 12 ROW 36",38" (61) - METERING SYSTEM

1

102724A2

BALL BEARING,22.6mm ID

.875"

8шт.

2

22224

COLLAR

Lock 7/8 Hex

8шт.

3

402450A1

SHAFT

22 mm Hex 2434 mm

4шт.

4

84553071

FLANGE BOLT

3/8 X 3"

24шт.

5

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

32шт.

7

353037A1

SPROCKET

34 Tooth

4шт.

8

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

9

84523394

KEYWAY

Set Screw

1шт.
