(35.745.AA[06]) - HYDRAULIC SEED DRIVE FOR 12 ROW 40"

Запчасти Case IH 1235 (35.745.AA[06]) - HYDRAULIC SEED DRIVE FOR 12 ROW 40" (35) - HYDRAULIC SYSTEMS

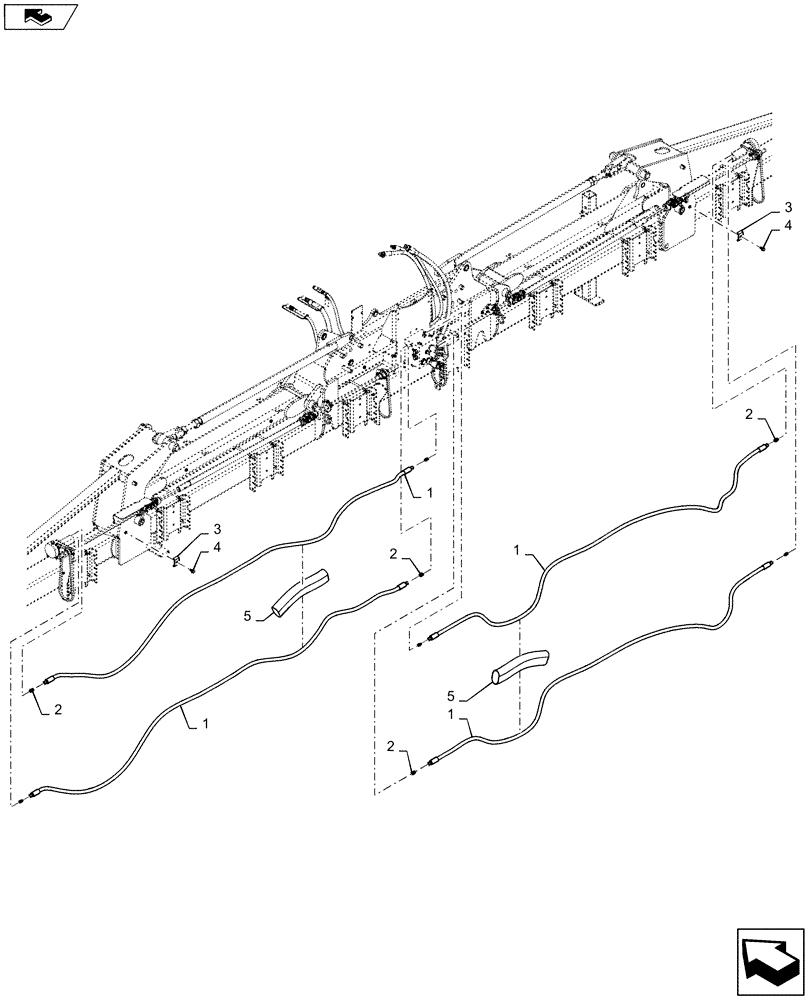

Схема запчастей Case IH 1235 - (35.745.AA[06]) - HYDRAULIC SEED DRIVE FOR 12 ROW 40" (35) - HYDRAULIC SYSTEMS
2
2
5
4
1
1
2
1
1
4
home
3
3
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1254526C2

HOSE ASSY.

.25 X 135"

4шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

8шт.

3

411879A1

Hose

6шт.

4

50215

BOLT,Hex Serr Flg, 3/8" - 16 x 1/2"

6шт.

5

87502709

PROTECTIVE SLEEVE,2-1/2" OD x 18" L

2.5 X 18"

2шт.
