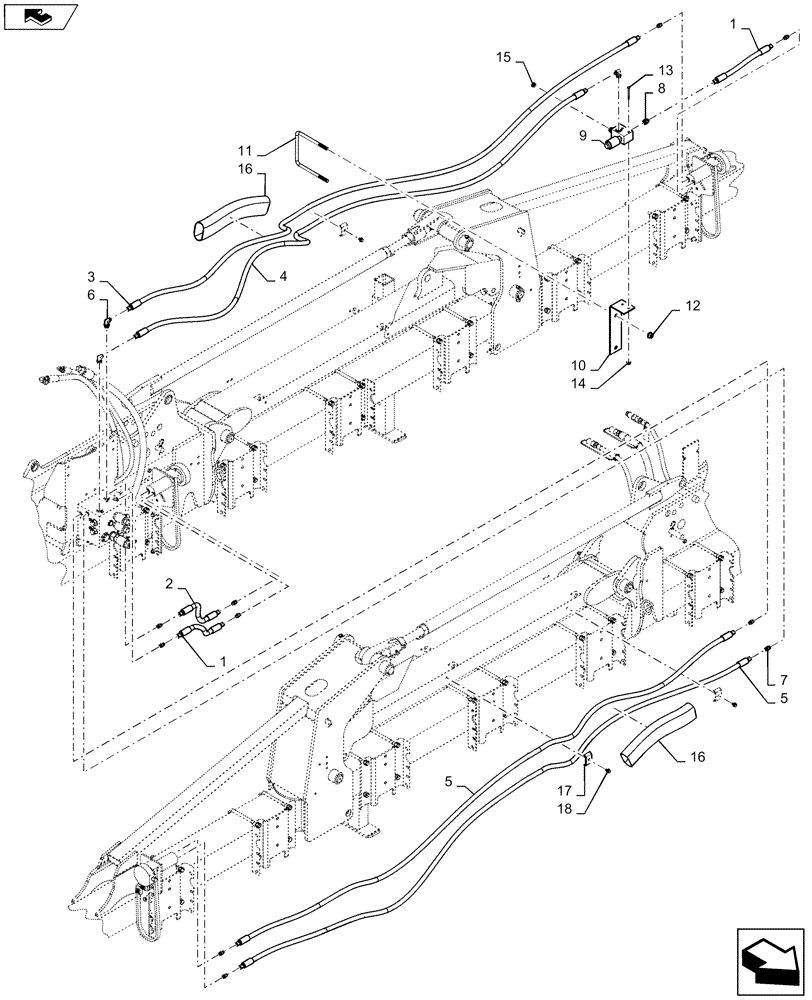

Запчасти Case IH 1235 (35.745.AA[07]) - HYDRAULIC SEED DRIVE FOR 16 ROW 30" (35) - HYDRAULIC SYSTEMS

1

1284323C1

HYDRAULIC HOSE

10 Id X 380 mm

2шт.

2

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

1шт.

3

435694A1

HYDRAULIC HOSE

.375 X 190"

1шт.

4

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

.375 X 175"

1шт.

5

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

.375 X 185"

2шт.

6

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

3шт.

7

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

10шт.

8

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

9

226734A4

VALVE

Proportional Flow Control

1шт.

10

87582352

BRACKET

Auxillary Valve

1шт.

11

1250813C1

U-BOLT

7 X 7"

1шт.

12

86521608

FLANGE NUT,Flg, 5/8"-11, G5

2шт.

13

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

2шт.

14

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

15

9625178

PLUG,9/16" - 18 ORB

1шт.

16

87502709

PROTECTIVE SLEEVE,2-1/2" OD x 18" L

2.5 X 18"

2шт.

17

427779A1

CLAMP

2 Hose

6шт.

18

50215

BOLT,Hex Serr Flg, 3/8" - 16 x 1/2"

6шт.
