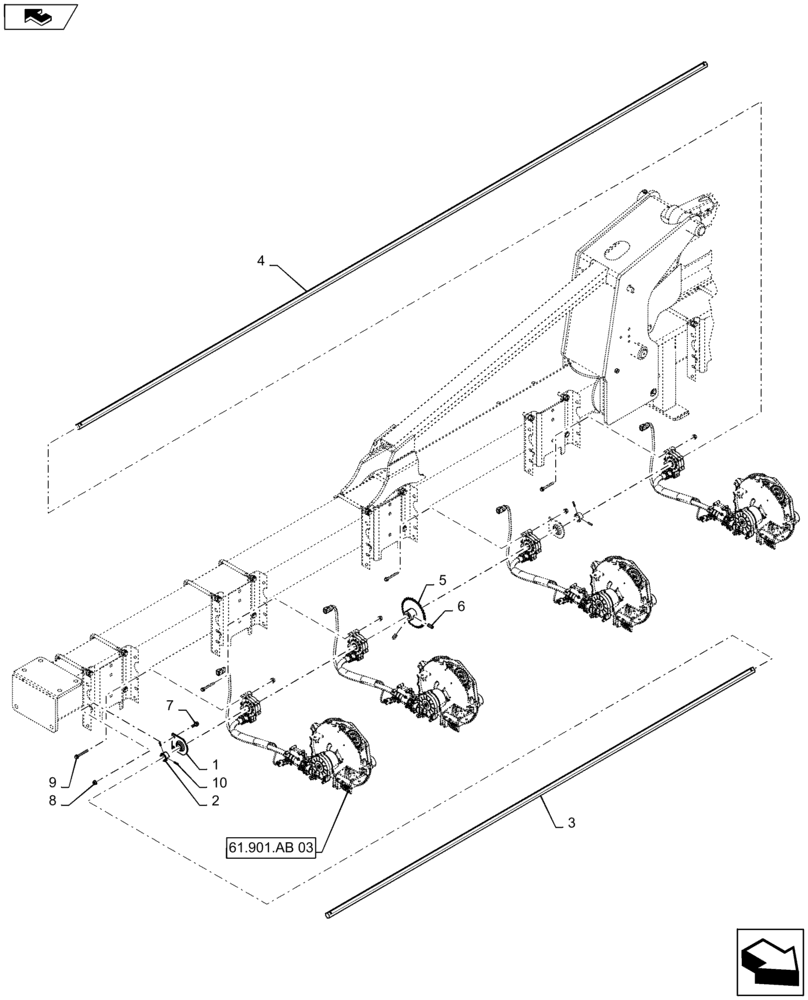

Запчасти Case IH 1235 (61.901.AF[10]) - METER DRIVE SHAFT WITH CABLE FOR 16 ROW 30" (61) - METERING SYSTEM

1

102724A2

BALL BEARING,22.6mm ID

.875 Hex Bore

6шт.

2

22224

COLLAR

Lock Stop 7/8 Hex

6шт.

3

84333508

CLUTCH INPUT SHAFT

7/8" Hex

2шт.

4

132421A1

BAR

7/8" Hex

1шт.

5

353037A1

SPROCKET

34 Tooth

3шт.

6

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

6шт.

7

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

38шт.

9

84553071

FLANGE BOLT

3/8-16

32шт.

10

84523394

KEYWAY

Set Screw

1шт.
