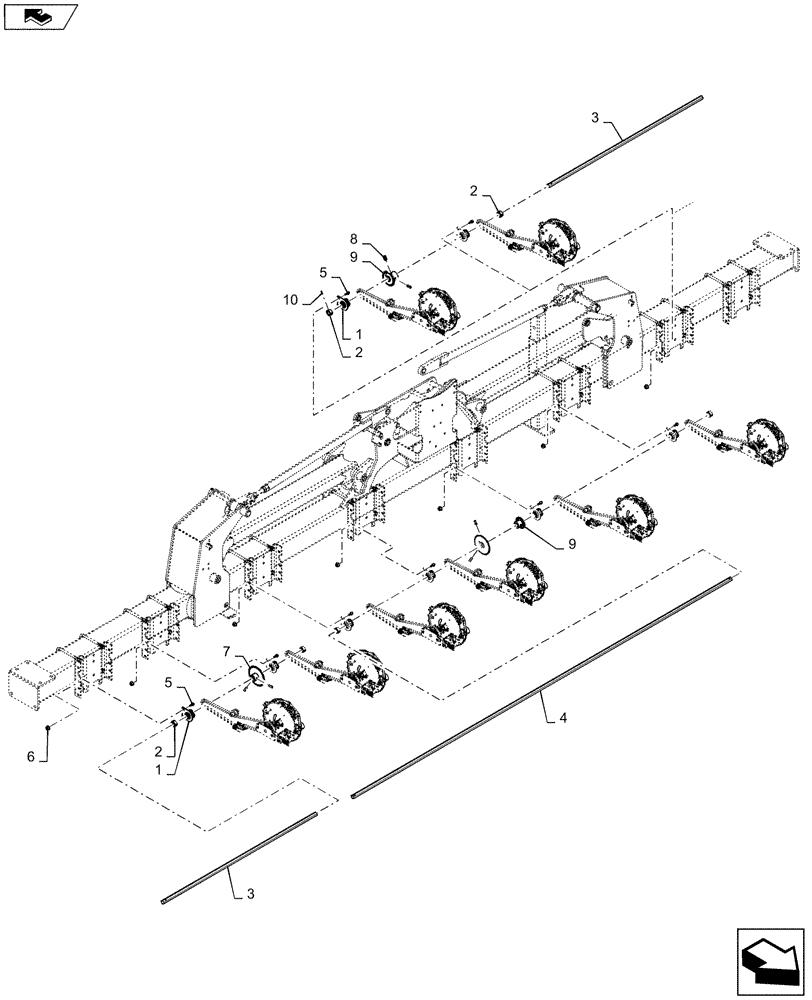

Запчасти Case IH 1235 (61.901.AF[01]) - METERING DRIVE SHAFT FOR 8 ROW 38,40" (61) - METERING SYSTEM

1

413712A1

BEARING ASSY,1.90625" OD x 1.875"

8шт.

2

22224

COLLAR

Lock 7/8"

6шт.

3

135382A1

BAR

Shaft Transmission Input 7/8"

2шт.

4

402951A1

DRIVE SHAFT

22 mm Hex X 3550 mm

1шт.

5

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.

7

353037A1

SPROCKET

34 Tooth

2шт.

8

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

9

103681A1

SPROCKET

18 Tooth

2шт.

10

84523394

KEYWAY

Set Screw 1/4-28 X 3/8"

1шт.
