(61.901.AF[09]) - METER DRIVE SHAFT WITH CABLE DRIVE FOR 12/30

Запчасти Case IH 1245 (61.901.AF[09]) - METER DRIVE SHAFT WITH CABLE DRIVE FOR 12/30 (61) - METERING SYSTEM

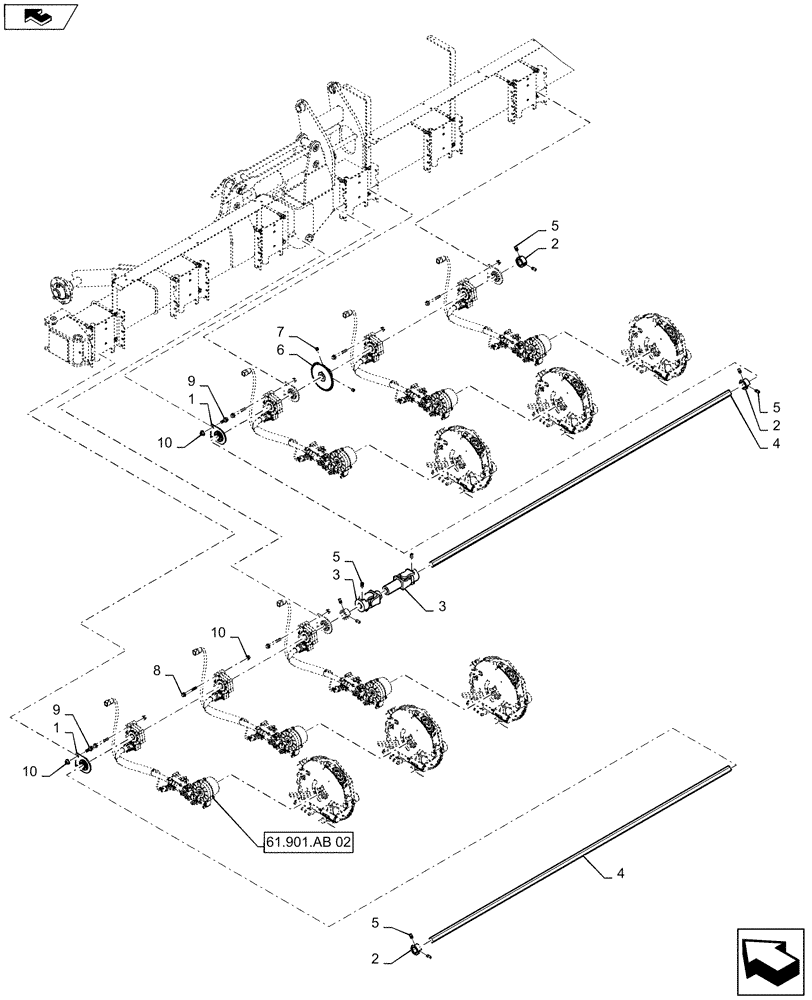

Схема запчастей Case IH 1245 - (61.901.AF[09]) - METER DRIVE SHAFT WITH CABLE DRIVE FOR 12/30 (61) - METERING SYSTEM
4
1
1
10
2
5
2
6
3
5
9
61.901.ab 02
home
2
10
10
4
8
5
3
9
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

102724A2

BALL BEARING,22.6mm ID

.875 Hex Bore

5шт.

2

22224

COLLAR

Lock Stop

4шт.

3

84318444

DRIVE SHAFT

.875" 1956mm For Sec 1 & Sec 2

2шт.

4

87444140

DRIVE SHAFT

Coupling Telescoping

1шт.

5

87035712

SET SCREW,Hex Skt, 3/8" - 16 x 5/8"

2шт.

6

353037A1

SPROCKET

34 Tooth

1шт.

7

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

8

84553071

FLANGE BOLT

3/8 X 3"

12шт.

9

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.
