(63.100.AE[09]) - FERTILIZER DISTRIBUTION FOR 16/30

Запчасти Case IH 1245 (63.100.AE[09]) - FERTILIZER DISTRIBUTION FOR 16/30 (63) - CHEMICAL APPLICATORS

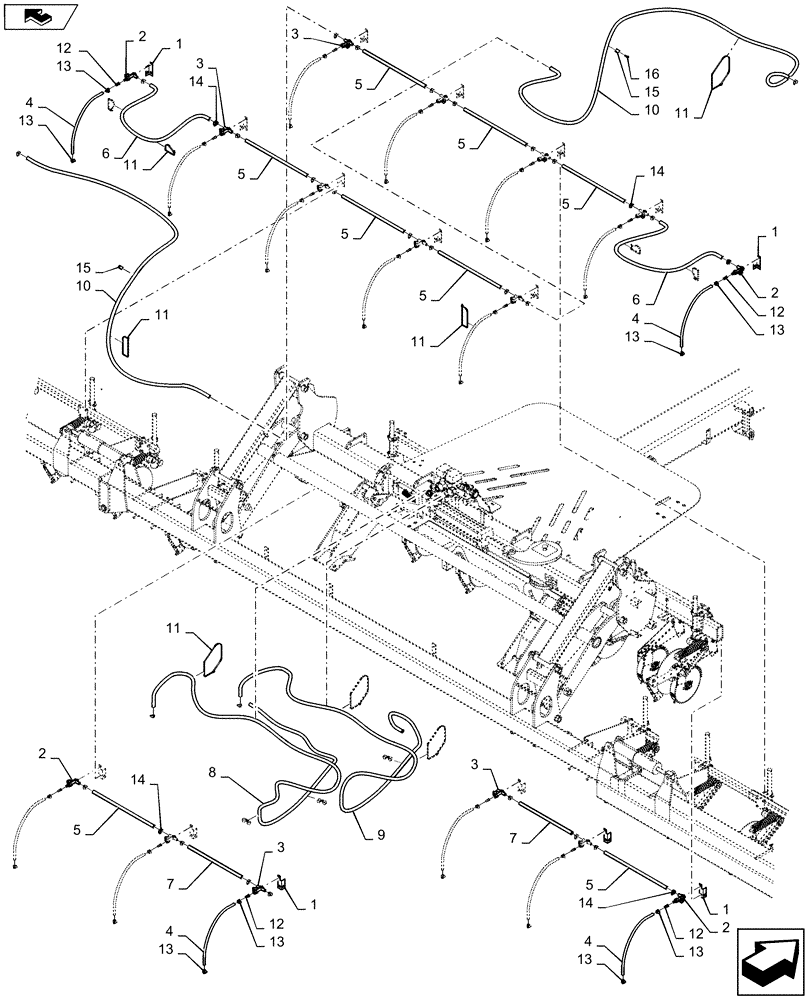

Схема запчастей Case IH 1245 - (63.100.AE[09]) - FERTILIZER DISTRIBUTION FOR 16/30 (63) - CHEMICAL APPLICATORS
4
9
4
2
11
4
14
5
5
13
1
5
12
2
11
3
5
1
11
6
15
3
2
13
13
7
10
13
3
10
12
14
1
13
13
3
6
13
11
11
5
12
12
7
1
2
5
14
5
15
13
14
home
5
16
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

241016A1

BRACKET

Hose Support

16шт.

2

241019A1

NOZZLE

Check Valve Elbow

4шт.

3

241017A1

NOZZLE

Check Valve Tee

12шт.

4

134331C2

HOSE

Bulk 100' Cut To Length 1067mm

16шт.

5

241923A1

HOSE

Bulk 100' Cut To Length 838mm

8шт.

6

241923A1

HOSE

Bulk 100' Cut To Length 2438mm

2шт.

7

241923A1

HOSE

Bulk 100' Cut To Length 762mm

2шт.

8

241923A1

HOSE

Bulk 100' Cut To Length 5588mm

1шт.

9

241923A1

HOSE

Bulk 100' Cut To Length 5207mm

1шт.

10

241923A1

HOSE

Bulk 100' Cut To Length 5791mm

2шт.

11

112620A1

CABLE TIE

34"

10шт.

12

86985352

FITTING

1/2" Barbed

16шт.

13

244358

HOSE CLIP,0.44" - 0.78"

32шт.

14

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

#10

32шт.

15

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

16

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.
